Recom International Power

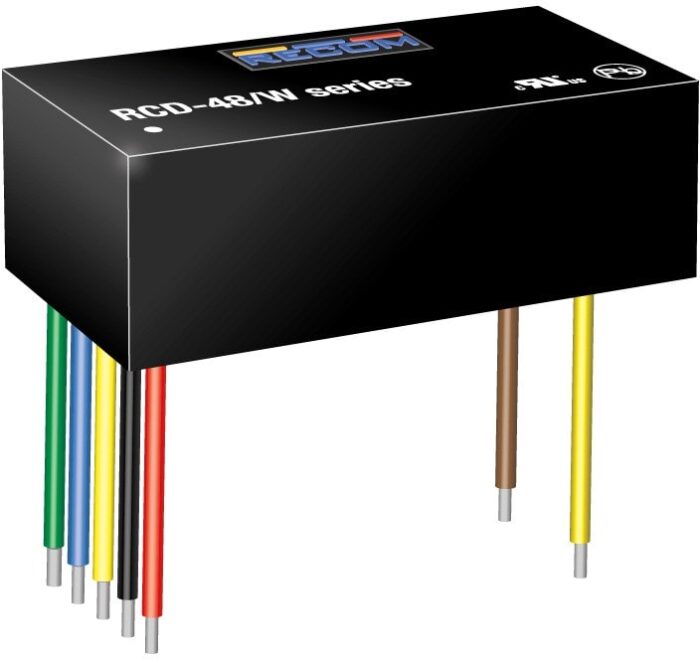

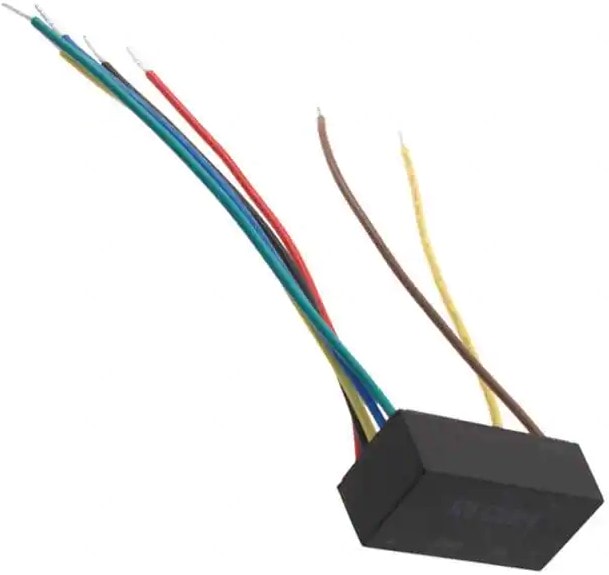

8002642545 RCD-48-0.70/W, Преобразователь: DC/DC, Uвх: 9-60В, Uвых: 2-56ВDC, Iвых: 700мА, 16г () Hirschmann
5710,00 ₽
Описание
Описание Преобразователь: DC/DC, Uвх: 9-60В, Uвых: 2-56ВDC, Iвых: 700мА, 16г
| Вес, г | 16.6 |
| Configuration | Enclosed |
| Series | RCD-48 |
| Рабочее напряжение,В | 56 |
| Brand | RECOM Power |
| Manufacturer | RECOM |
| Packaging | Bulk |
| Product Category | LED Power Supplies |
| Product Type | LED Power Supplies |
| Product | LED Power Supplies |
| Subcategory | AC-DC Power Supply |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package | Bag |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Remote On/Off, OTP, SCP |
| Factory Pack Quantity: Factory Pack Quantity | 12 |
| IP Rating | IP67 |
| Termination Style | Wire Leads |
| Type | Constant Current |
| Approval Agency | EN, UL |
| Operating Temperature | -40В°C ~ 75В°C |
| Size / Dimension | 1.28″» L x 0.66″» W x 0.44″» H (32.6mm x 16.7mm x |
| Weight | 0.036 lb (16.33 g) |
| Voltage Rating | 60V dc |
| Current Rating | 0 → 700mA |
| Part # Aliases | 80000131 |
| Power (Watts) | 39W |
| Tradename | Lightline |
| Compliance | RoHS; UL |
| Number of Outputs | 1 Output |
| Output Voltage | 2 → 56V dc |
| Primary Type | DC-DC |
| Mounting Type | Chassis Mount |
| Maximum Operating Temperature | +75 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | Through Hole |
| California Prop 65 | Warning Information |
| Current — Output (Max) | 700mA |
| Dimming | With Dimming |
| Efficiency | 96% |
| Ratings | IP67 |
| Topology | Buck |
| Voltage — Input (Max) | 60V |
| Voltage — Input (Min) | 9V |
| Voltage — Output | 2 ~ 56V |
| Dimming Capability | With Dimming |
| Industry | Industrial |
| Input Voltage, Max | 60 V |
| Input Voltage, Min | 9 V |
| Input Voltage | 9 → 60 V dc |
| Open Frame/Enclosed | Enclosed |
| Operation Mode | Constant Current(CC) |
| Output Current-Channel 1 | 0 mA to 700 mA |
| Output Power | 39.2 W |
| Output Voltage-Channel 1 | 2 VDC to 56 VDC |
| AC or DC Input Voltage | dc |
| Dimmable | Yes |
| Dimming Operation | 0 to 5 V dc, PWM |
| LED Driver Type | LED Driver |
| Maximum Output Power | 39.2W |
| Operation | Constant Current |
| Output Current | 700mA |
