Orion Fans

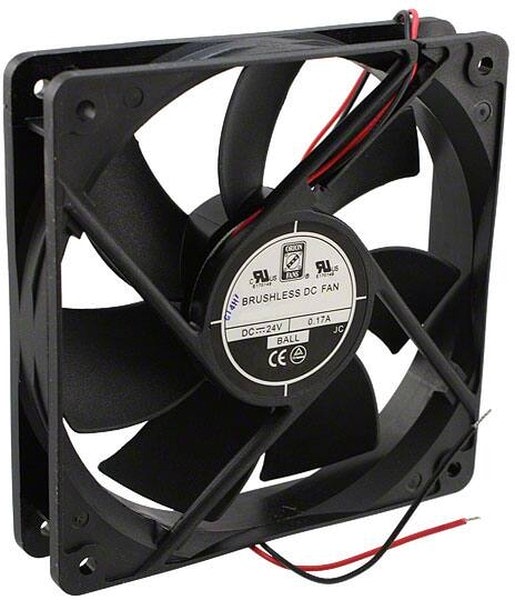

8005183962 OD1225-24MB, DC Fans DC Fan, 120x120x25mm, 24VDC, 83CFM, 0.17A, 38dBA, 2050RPM, Dual Ball, Lead Wires Hirschmann
4300,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 83.0 CFM (2.32mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 4 |
| Вес, кг | 3.67 |
| Fan Type | Tubeaxial |
| Series | OD1225-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 38.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 25.00mm |
| Current Rating (Amps) | 0.170A |
| Static Pressure | 0.12 in H2O(29.9 Pa) |
| Частота вращения,об./мин. | 2050 |
| Производительность,м.куб./мин. | 83 |
| Шум, дБA | 38 |
Детали
| Бренд | Orion Fans |
|---|
