Orion Fans

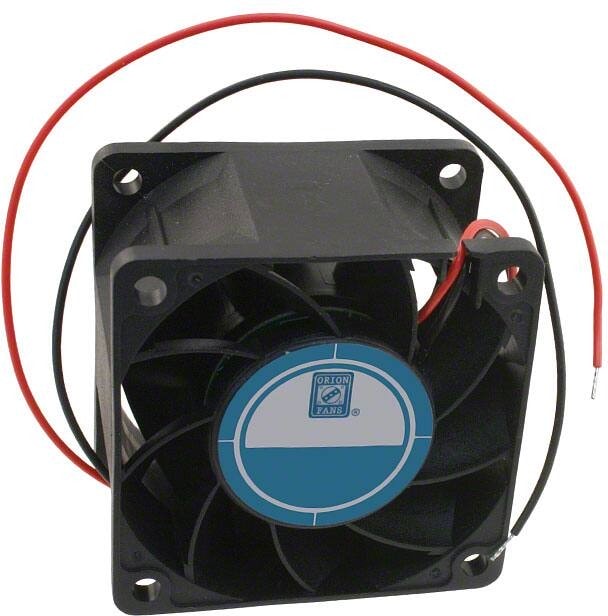

8005184092 OD6038-12HB-VXC, DC Fans DC Vane Axial Fan, High Static Pressure, 60x60x38mm, 12VDC, 61CFM, 17W, 2x Wire Hirschmann
4240,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 61.0 CFM (1.71mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD6038 VA-> |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 64.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Width | 38.00mm |
| Current Rating (Amps) | 1.42A |
| Static Pressure | 1.59 in H2O(396.1 Pa) |
| Производительность,м.куб./мин. | 61 |
| Video File | Vane Axial Self Levitating from Orion Fans |
Детали
| Бренд | Orion Fans |
|---|
