Orion Fans

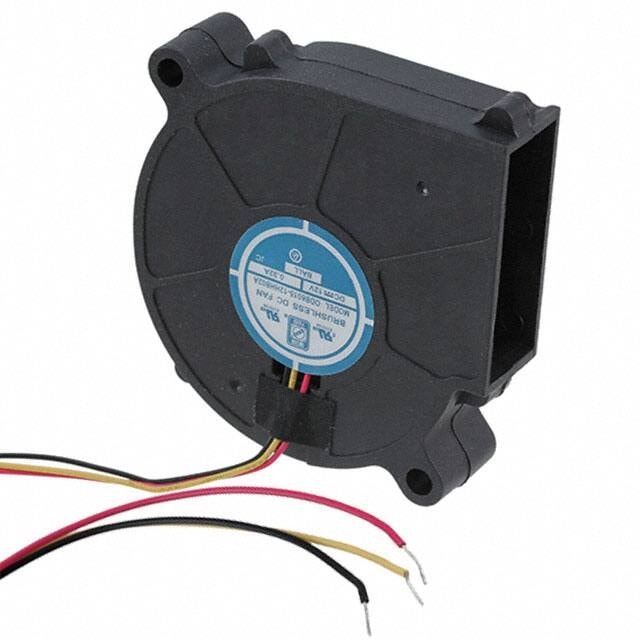

8005184163 ODB6015-12HHB02A, Blowers & Centrifugal Fans DC Blower, 60x60x15mm, 12VDC, 6.9CFM, 3.84W, 46.2dBA, Ball, Wire, Alarm Output Hirschmann
3260,00 ₽
Описание
Fan Blower 12VDC Rectangular/Rounded — 57.25mm L x 50.37mm H Ball 7.4 CFM (0.207mВі/min) 3 Wire Leads
| Вес, г | 35 |
| Потребляемая мощность, Вт | 3.84 |
| Fan Type | Blower |
| Series | ODB6015-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 15 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Sensor |
| Noise | 44.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-57.25mm L x 50.37mm H |
| Termination | 3 Wire Leads |
| Weight | 0.077 lb(34.93 g) |
| Width | 15.20mm |
| Current Rating (Amps) | 0.200A |
| Static Pressure | 0.8 in H2O(199.3 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 7.4 |
| Voltage Range | 7 ~ 13.2VDC |
Детали
| Бренд | Orion Fans |
|---|
