Sanyo Denki

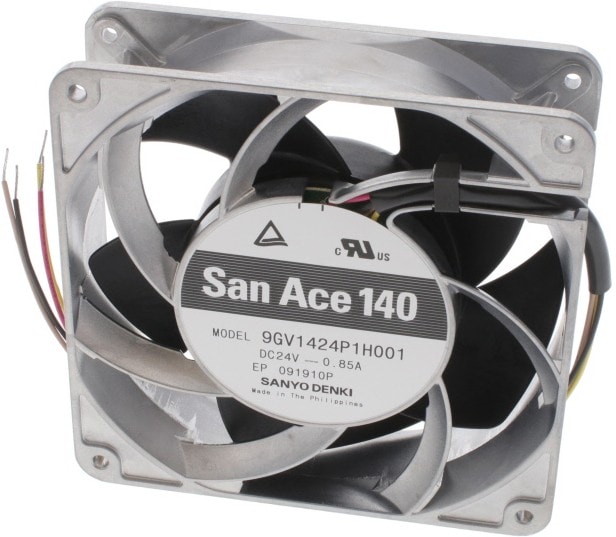

8005415509 9GV1424P1H001, DC Fans Axial Fan, 140x140x38mm, 24VDC, Guide Vane, High Performance, Ribless, Tach/PWM Hirschmann
14380,00 ₽
Описание
San Ace Fans with PWM Control Function Sanyo Denki San Ace Fans with Pulse Width Modulation (PWM) Control Function enables designers to externally control the speed of fans. This beneficial design feature varies the duty cycles of PWM input signals between the control and grounding terminals. The PWM control allows fans to operate optimally in response to the device's heat level, lowering the noise and power consumption of systems. Sanyo Denki San Ace Fans with PWM Control Function offer precise control and the ability to control multiple fans.
| Вес, г | 633 |
| Air Flow | 212 CFM(5.94m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 140×140 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 14 |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | PWM Control, Speed Sensor(Tach) |
| Airflow | 212 CFM(6 m3/min) |
| Current Type | DC |
| Depth | 38 mm |
| Noise | 62.0dB(A) |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 20.4 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Housing Material | Aluminum |
| speed | 5200 RPM |
| Static Pressure | 1.2 in H2O(298.9 Pa) |
| Bearing Type | Ball |
| Pressure Type | 1.2 in H2O |
| Power (Watts) | 20.4 W |
| RPM | 5200 RPM |
| Voltage — Rated | 24VDC |
Детали
| Бренд | Sanyo Denki |
|---|
