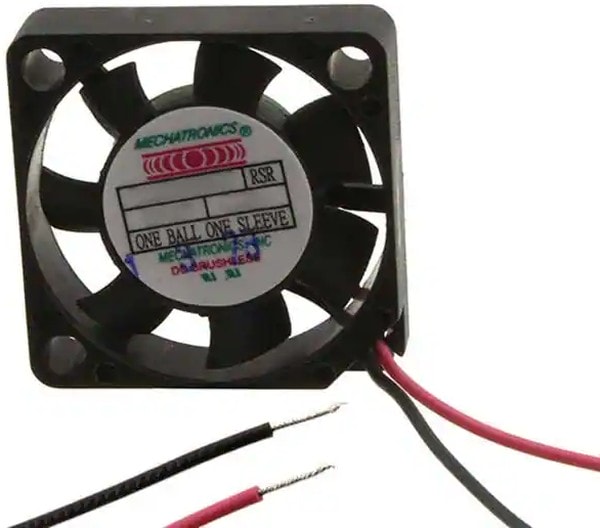

8005737738 MA2506H05C-RSR, Fan Tubeaxial 5VDC Square — 25mm L x 25mm H 1 Ball/1 Sleeve 2.1 CFM (0.059m³/min) 2 Wire Leads Hirschmann
3470,00 ₽
Описание
Fan Tubeaxial 5VDC Square — 25mm L x 25mm H 1 Ball/1 Sleeve 2.1 CFM (0.059mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | MA2506-> |
| Тип подшипника | 1 Ball/1 Sleeve |
| Размеры рамы,мм | 25×25 |
| Рабочее напряжение,В | 5 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 25.5dB(A) |
| Approval Agency | cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-25mm L x 25mm H |
| Termination | 2 Wire Leads |
| Weight | 0.018 lb(8.16 g) |
| Width | 6.10mm |
| Current Rating (Amps) | 0.070A |
| Static Pressure | 0.13 in H2O(32.4 Pa) |
| Частота вращения,об./мин. | 10500 |
| Производительность,м.куб./мин. | 2.1 |
| Voltage Range | 3 ~ 6.5VDC |
Детали
| Бренд | Mechatronics |
|---|
