Mechatronics

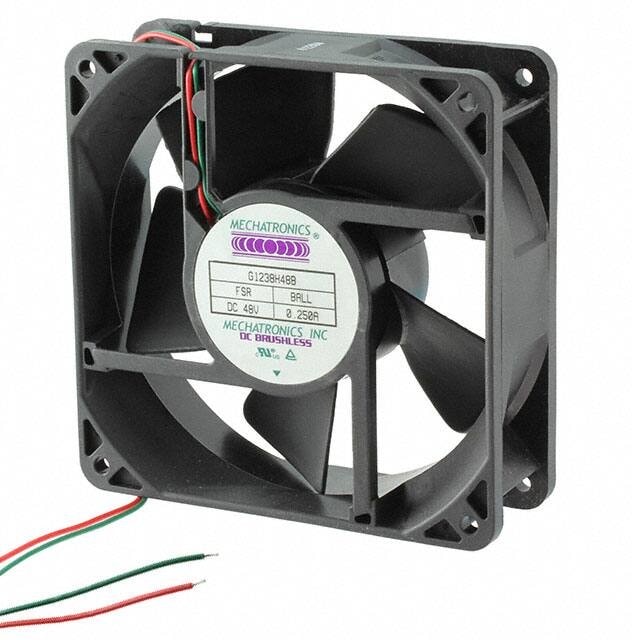

8005741487 G1238H48B-FSR, Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 141.2 CFM (3.95m³/min) 2 Wire Leads Hirschmann
4270,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 141.2 CFM (3.95mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | G1238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 48 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 46.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Wire Leads |
| Weight | 0.74 lb(335.66 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.250A |
| Static Pressure | 0.41 in H2O(102.1 Pa) |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 141.2 |
Детали
| Бренд | Mechatronics |
|---|
