Mechatronics

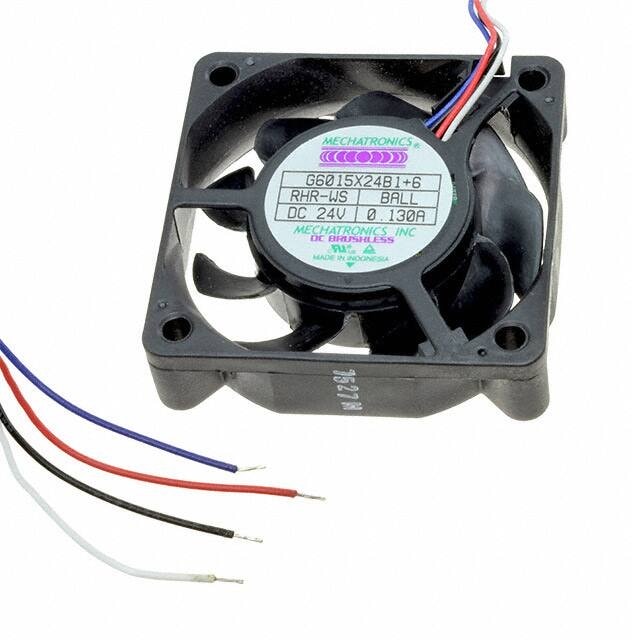

8005745956 G6015X24B1+6-RHR-WS, Fan Tubeaxial 24VDC Square — 60mm L x 60mm H Ball 22.0 CFM (0.616m³/min) 5 Wire Leads Hirschmann
3760,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 60mm L x 60mm H Ball 22.0 CFM (0.616mВі/min) 5 Wire Leads
| Fan Type | Tubeaxial |
| Series | G6015-H-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 24 |
| Питание | 5pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Alarm Sensor, PWM Control, Speed Sensor(Tach) |
| Noise | 39.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 5 Wire Leads |
| Weight | 0.111 lb(50.35 g) |
| Width | 15.30mm |
| Current Rating (Amps) | 0.170A |
| Static Pressure | 0.3 in H2O(74.7 Pa) |
| Частота вращения,об./мин. | 5800 |
| Производительность,м.куб./мин. | 22 |
Детали
| Бренд | Mechatronics |
|---|
