Orion Fans

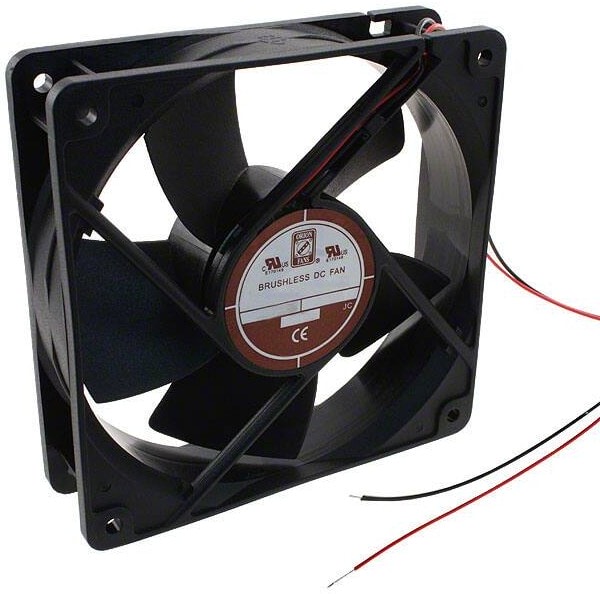

8005771292 OD1232-48HB, Fan Tubeaxial 48VDC Square — 120mm L x 120mm H Ball 120.0 CFM (3.36m³/min) 2 Wire Leads Hirschmann
6130,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 120mm L x 120mm H Ball 120.0 CFM (3.36mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OD1232-> |
| Special Features | High Speed |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 32 |
| Питание | 2pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 51.0dB |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 32.00mm |
| Current Rating (Amps) | 0.180A |
| Static Pressure | 0.42 in H2O(104.6 Pa) |
| Частота вращения,об./мин. | 3750 |
| Производительность,м.куб./мин. | 120 |
| Шум, дБA | 51 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Pressure | 0.42inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Auto Restart|Impedance|Polarity |
| Shape | Square |
| Voltage Range | 24 ~ 55.2VDC |
| Size (Metric) (mm) | 120 X 120 X 32 |
| Voltage Rating (V) | 48 |
| Nominal Speed (r/min) | 3750 |
| Maximum Airflow (CFM) | 120 |
| Noise Level (dB) | 51 |
| Bearings | Ball |
| Line Current (A) | 0.18 |
| Operating Input Voltage Range (V) | 24 to 55.2 |
Детали
| Бренд | Orion Fans |
|---|
