Sanyo Denki

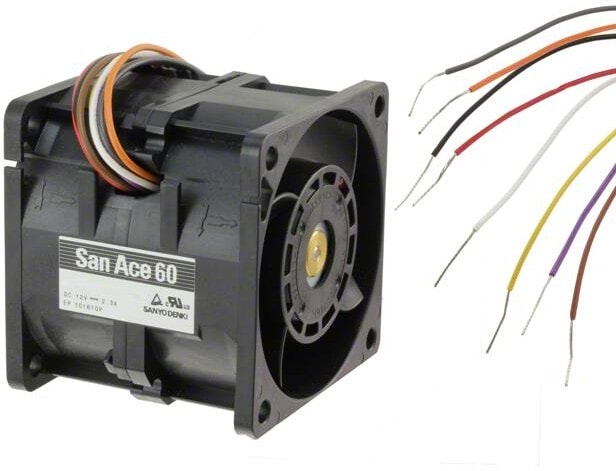

8005772370 9CRA0612P6J001, Fan Tubeaxial (Dual) 12VDC Square — 60mm L x 60mm H Ball 74.1 CFM (2.07m³/min) 3 Wire Leads per Fan Hirschmann
13090,00 ₽
Описание
Fan Tubeaxial (Dual) 12VDC Square — 60mm L x 60mm H Ball 74.1 CFM (2.07mВі/min) 3 Wire Leads per Fan
| Потребляемая мощность, Вт | 27.6 |
| Air Flow | 74.1 CFM (2.07mВі/min) |
| Fan Type | Tubeaxial(Dual) |
| Series | San Ace 60-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Counter-Rotating, Locked Rotor Protection, Speed S |
| Noise | 70.0dB(A) |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads per Fan |
| Weight | 0.441 lb(200.00 g) |
| Width | 56.00mm |
| Current Rating (Amps) | 2.30A |
| Static Pressure | 3.827 in H2O(953.3 Pa) |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 16800 |
| Производительность,м.куб./мин. | 74.1 |
| Power (Watts) | 27.6W |
| RPM | 16800 Front, 14500 Rear |
| Voltage — Rated | 12VDC |
| Video File | Counter Rotating Fan DemonstrationSummary of SanAc |
| Voltage Range | 10.8 ~ 13.2VDC |
Детали
| Бренд | Sanyo Denki |
|---|
