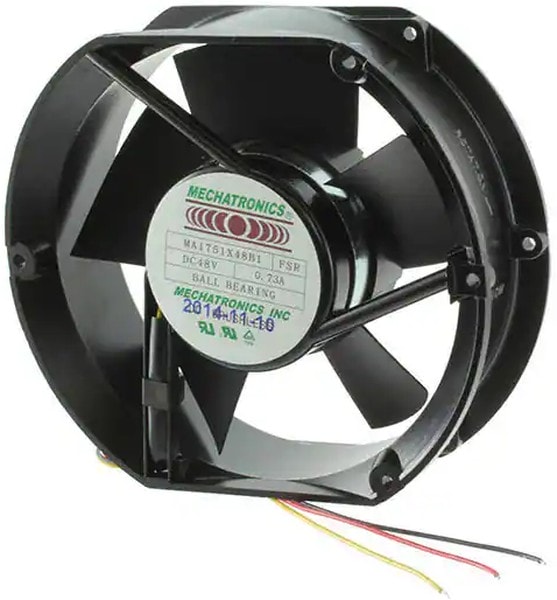

8005827984 MA1751X48B1-FSR, Fan Tubeaxial 48VDC Rectangular/Rounded – 172mm L x 150mm H Ball 290.6 CFM (8.14m³/min) 3 Wire Leads Hirschmann
13130,00 ₽
Описание
Fan Tubeaxial 48VDC Rectangular/Rounded – 172mm L x 150mm H Ball 290.6 CFM (8.14mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Noise Level | 63 dB |
| Series | MA1751-> |
| Special Features | Tachometer |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Conformal Coating, Speed Sensor(Tach) |
| Noise | 63.0dB(A) |
| Power Rating | N/A |
| Approval Agency | cUL, TUV, UL |
| Material – Blade | Polybutylene Terephthalate(PBT) |
| Material – Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 3 Wire Leads |
| Weight | 1.7 lbs(771.1 g) |
| Width | 50.80mm |
| Category | DC Fan |
| COO | CN |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 290.6 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 48 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.730A |
| Static Pressure | 0.78 in H2O(194.3 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 290.6 |
Детали
| Бренд | Mechatronics |
|---|
