Sanyo Denki

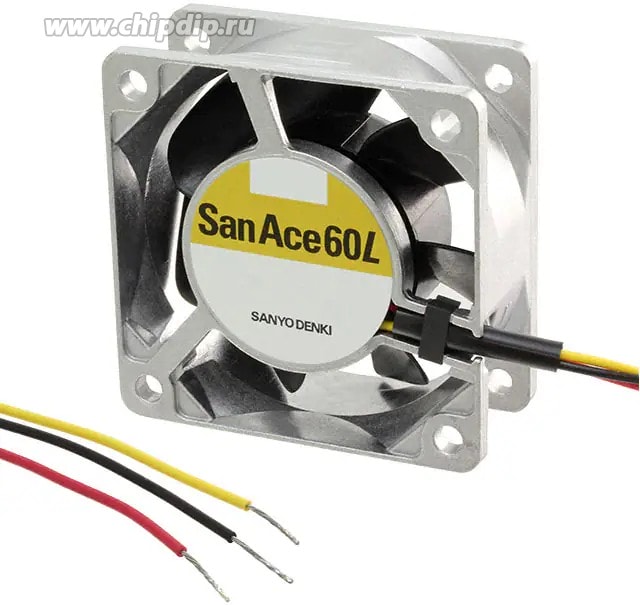

8005845935 109L0612S401, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 23.0 CFM (0.644m³/min) 3 Wire Leads Hirschmann
11990,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 23.0 CFM (0.644mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 2.04 |
| Fan Type | Tubeaxial |
| Series | San Ace 60L-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Noise | 33.0dB(A) |
| Approval Agency | CSA, TUV, UR |
| Lifetime @ Temp. | 100000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads |
| Weight | 0.222 lb(100.7 g) |
| Width | 25.00mm |
| Current Rating (Amps) | 0.170A |
| Static Pressure | 0.228 in H2O(56.8 Pa) |
| Частота вращения,об./мин. | 4600 |
| Производительность,м.куб./мин. | 23 |
| Video File | San Ace L Long Life FansSummary of SanAce Cooling |
| Voltage Range | 10.2 ~ 13.8VDC |
Детали
| Бренд | Sanyo Denki |
|---|
