Orion Fans

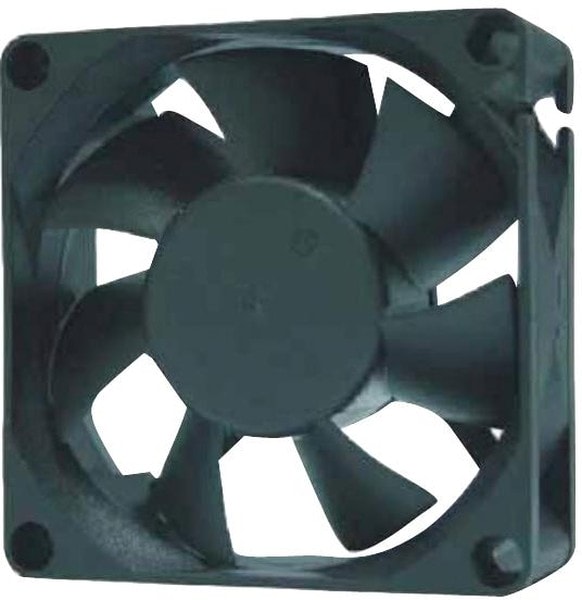

8005854077 OD7025-12HBXC01A, Fan Tubeaxial 12VDC Square — 70mm L x 70mm H Ball 60.0 CFM (1.68m³/min) 3 Wire Leads Hirschmann
3780,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 70mm L x 70mm H Ball 60.0 CFM (1.68mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 9.6 |
| Fan Type | Tubeaxial |
| Series | OD7025-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 70×70 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Speed Sensor(Tach) |
| Noise | 49.5dB |
| Power Rating | 9.6W |
| Approval Agency | CE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-70mm L x 70mm H |
| Termination | 3 Wire Leads |
| Weight | 0.198 lb(89.81 g) |
| Width | 25.00mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.800A |
| Static Pressure | 0.46 in H2O(114.6 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 620mA |
| Air Flow — CFM | 57CFM |
| External Depth | 25mm |
| Fan Frame Size | 70mm |
| Fan Frame Type | Square |
| Noise Rating | 52.3dBA |
| Power Connection Type | 3 Lead Wires |
| Product Range | OD7025 Series |
| Rated Speed | 6000rpm |
| Частота вращения,об./мин. | 6000 |
| Производительность,м.куб./мин. | 60 |
| Шум, дБA | 52.3 |
| Voltage Range | 10.8 ~ 13.2VDC |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
