Orion Fans

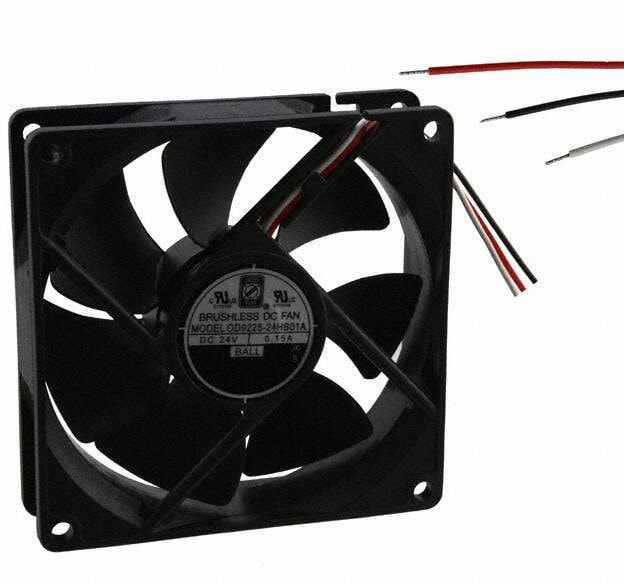

8005866597 OD9225-24HB01A, Fan Tubeaxial 24VDC Square — 92.5mm L x 92.5mm H Ball 53.0 CFM (1.48m³/min) 3 Wire Leads Hirschmann
3050,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92.5mm L x 92.5mm H Ball 53.0 CFM (1.48mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD9225-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92.5×92.5 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Noise | 35.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-92.5mm L x 92.5mm H |
| Termination | 3 Wire Leads |
| Width | 25.00mm |
| Current Rating (Amps) | 0.150A |
| Static Pressure | 0.13 in H2O(32.4 Pa) |
| Ток,А | 0.14 |
| Частота вращения,об./мин. | 2900 |
| Производительность,м.куб./мин. | 53 |
| Шум, дБA | 35 |
| Voltage Range | 12 ~ 28VDC |
Детали
| Бренд | Orion Fans |
|---|
