Orion Fans

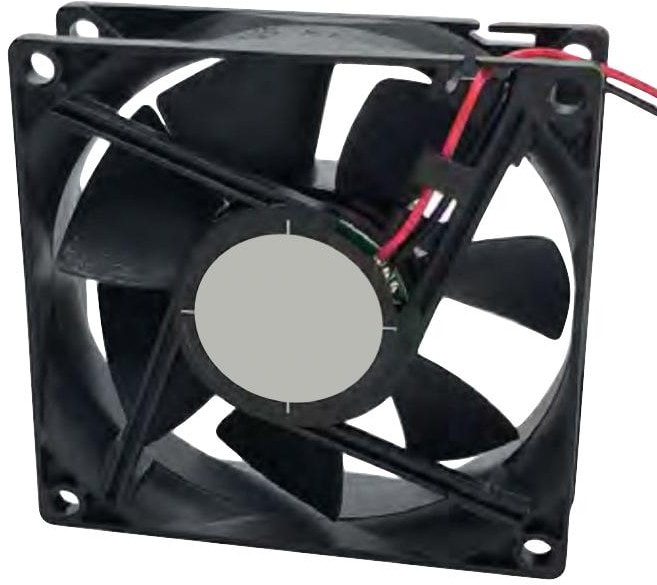

8005883073 OD8025-12MB, Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 31.0 CFM (0.868m³/min) 2 Wire Leads Hirschmann
2820,00 ₽
Описание
DC Fan Axial Ball Bearing 12V 8V to 13.8V 31.7CFM 28dB 80 X 80 X 25mm Middle Speed
| Mounting | Flange Mount |
| Noise Level | 28 dB |
| Special Features | Middle Speed |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| Power Rating | 1.8W |
| Type | Axial |
| Operating Temperature | -10 to 70 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 31 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Current Rating | 150mA |
| Air Flow — CFM | 31.7CFM |
| External Depth | 25mm |
| Fan Frame Size | 80mm |
| Fan Frame Type | Square |
| Noise Rating | 28dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD8025 Series |
| Rated Speed | 2700rpm |
| Частота вращения,об./мин. | 2500 |
| Производительность,м.куб./мин. | 31 |
| Шум, дБA | 28 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Pressure | 0.16inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Polarity|Auto Restart |
| Shape | Square |
| Size (mm) | 80 X 80 X 25 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 1.8 |
| Nominal Speed (r/min) | 2700 |
| Maximum Airflow (CFM) | 31.7 |
| Noise Level (dB) | 28 |
| Bearings | Ball |
| Line Current (A) | 0.15 |
| Operating Input Voltage Range (V) | 8 to 13.8 |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
