Comair Rotron

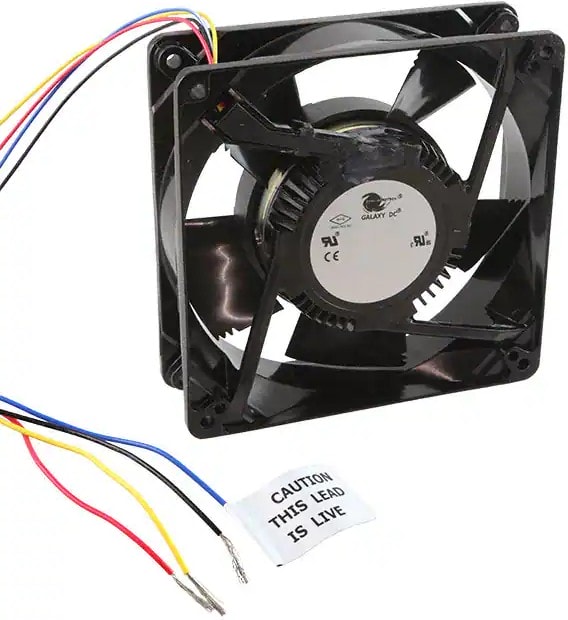

8005921000 17001172A, Fan Tubeaxial 48VDC Square — 127mm L x 127mm H Ball 150.0 CFM (4.20m³/min) 4 Wire Leads Hirschmann
15450,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 127mm L x 127mm H Ball 150.0 CFM (4.20mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 14.9 |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Размеры рамы,мм | 127×127 |
| Рабочее напряжение,В | 48 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection, PWM Control |
| Noise | 53.6dB(A) |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp. | 60000 Hrs @ 70В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-127mm L x 127mm H |
| Termination | 4 Wire Leads |
| Width | 38.10mm |
| Current Rating (Amps) | 0.310A |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Частота вращения,об./мин. | 3300 |
| Производительность,м.куб./мин. | 150 |
| Voltage Range | 36 ~ 60VDC |
Детали
| Бренд | Comair Rotron |
|---|
