Orion Fans

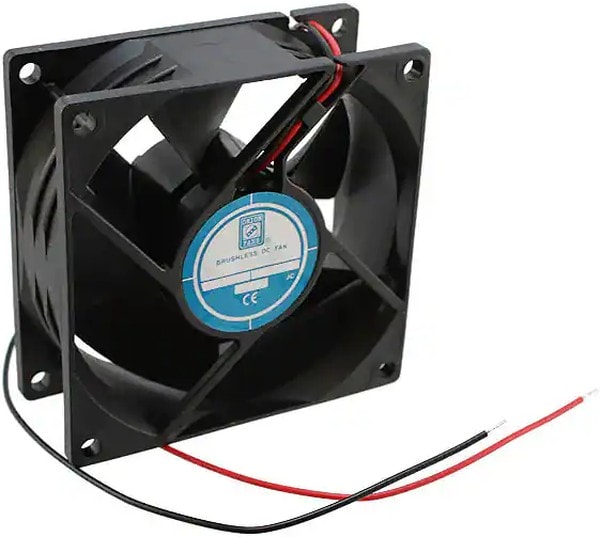

8005925504 OD8032-12MB, FAN AXIAL 80.5X32MM 12VDC WIRE Hirschmann
3700,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 80.5mm L x 80.5mm H Ball 44.0 CFM (1.23mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD8032-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80.5×80.5 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 32 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 36.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-80.5mm L x 80.5mm H |
| Termination | 2 Wire Leads |
| Width | 32.00mm |
| Current Rating (Amps) | 0.450A |
| Static Pressure | 0.28 in H2O(69.7 Pa) |
| Ток,А | 0.16 |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 44 |
| Шум, дБA | 37 |
| Voltage Range | 8 ~ 17VDC |
Детали
| Бренд | Orion Fans |
|---|
