Mechatronics

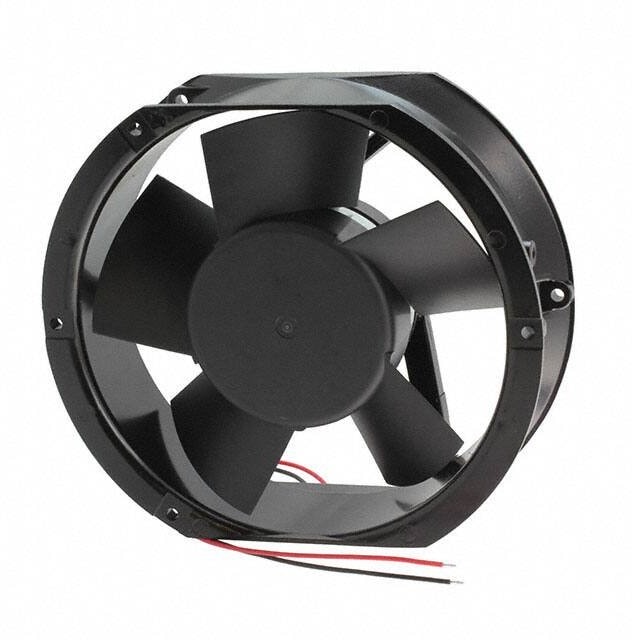

8005997528 MA1751X24B-FSR, Fan Tubeaxial 24VDC Rectangular/Rounded — 172mm L x 150mm H Ball 290.6 CFM (8.14m³/min) 2 Wire Leads Hirschmann
12320,00 ₽
Описание
Fan Tubeaxial 24VDC Rectangular/Rounded — 172mm L x 150mm H Ball 290.6 CFM (8.14mВі/min) 2 Wire Leads
| Вес, г | 5 |
| Fan Type | Tubeaxial |
| Noise Level | 63 dB |
| Series | MA1751-> |
| Special Features | N/A |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 63.0dB(A) |
| Power Rating | N/A |
| Approval Agency | cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -10 to 70 °C |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Wire Leads |
| Weight | 1.7 lbs(771.1 g) |
| Width | 50.80mm |
| Category | DC Fan |
| COO | CN |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 290.6 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Current Rating (Amps) | 1.20A |
| Static Pressure | 0.78 in H2O(194.3 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 290.6 |
Детали
| Бренд | Mechatronics |
|---|
