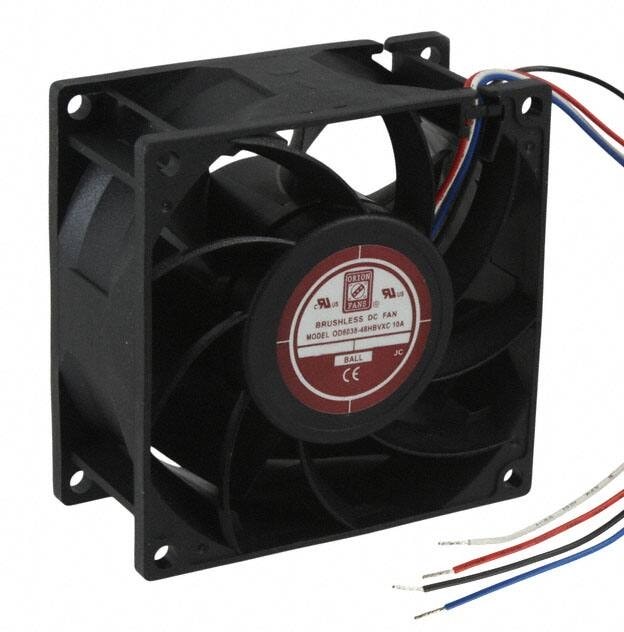

8006084491 OD8038-48HBVXC10A, Fan Tubeaxial 48VDC Square — 80mm L x 80mm H Ball 99.0 CFM (2.77m³/min) 4 Wire Leads Hirschmann
6230,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 80mm L x 80mm H Ball 99.0 CFM (2.77mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 14 |
| Fan Type | Tubeaxial |
| Series | OD8038 VA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 38 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, PWM Control, Speed Sensor(Tach) |
| Noise | 57.0dB |
| Approval Agency | cURus |
| Lifetime @ Temp. | 50000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.300A |
| Static Pressure | 0.81 in H2O(201.8 Pa) |
| Частота вращения,об./мин. | 6300 |
| Производительность,м.куб./мин. | 99 |
| Шум, дБA | 57 |
Детали
| Бренд | Orion Fans |
|---|
