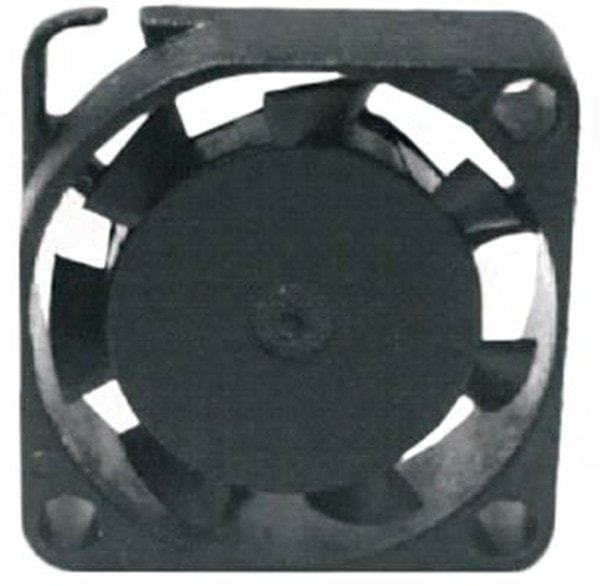

8006096926 MS2006E12D-RSR, Fan Tubeaxial 12VDC Square — 20mm L x 20mm H Sleeve 1.1 CFM (0.031m³/min) 2 Wire Leads Hirschmann
3790,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 20mm L x 20mm H Sleeve 1.1 CFM (0.031mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Noise Level | 31 dB |
| Series | MS2006-> |
| Тип подшипника | Sleeve |
| Размеры рамы,мм | 20×20 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Noise | 31.0dB(A) |
| Power Rating | N/A |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | N/A |
| Size / Dimension | Square-20mm L x 20mm H |
| Termination | 2 Wire Leads |
| Weight | 0.007 lb(3.18 g) |
| Width | 6.50mm |
| Category | DC Fan1342 |
| COO | CN |
| Housing Material | Plastic1345 |
| Maximum Airflow | 1.12 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Частота вращения,об./мин. | 12000 |
| Производительность,м.куб./мин. | 1.1 |
Детали
| Бренд | Mechatronics |
|---|
