Mechatronics

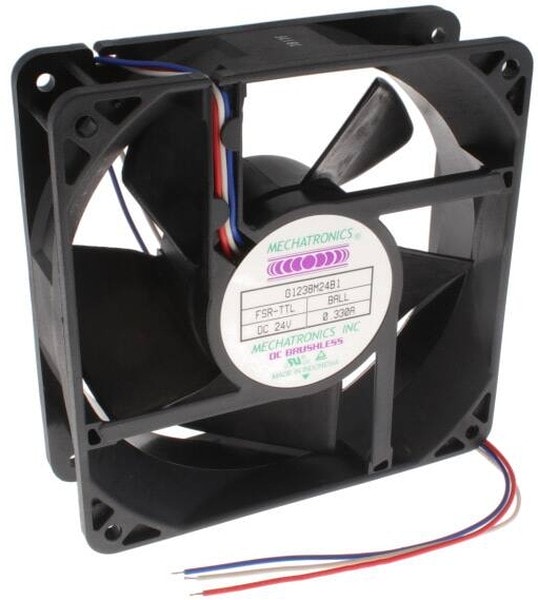

8006135917 G1238M24B1-FSR-TTL, Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 125.0 CFM (3.50m³/min) 3 Wire Leads Hirschmann
4610,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 125.0 CFM (3.50mВі/min) 3 Wire Leads
| Вес, г | 21 |
| Fan Type | Tubeaxial |
| Series | G1238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Speed Sensor(Tach), Thermal Overload Protector(T |
| Noise | 43.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 3 Wire Leads |
| Weight | 0.74 lb(335.66 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.330A |
| Static Pressure | 0.32 in H2O(79.7 Pa) |
| Частота вращения,об./мин. | 2800 |
| Производительность,м.куб./мин. | 125 |
Детали
| Бренд | Mechatronics |
|---|
