Orion Fans

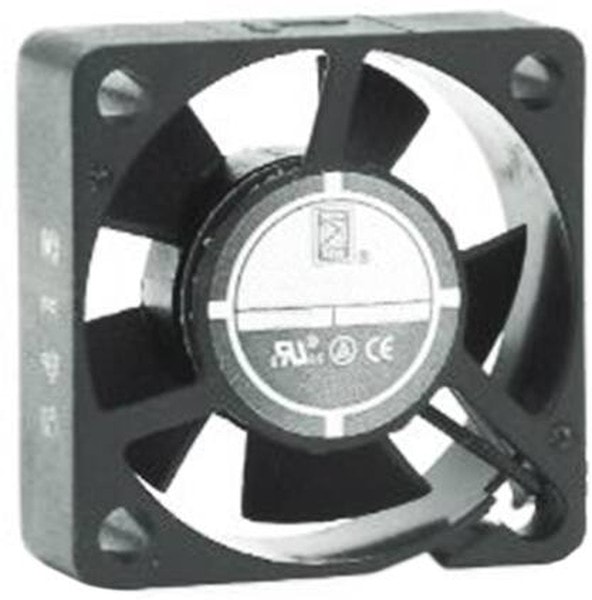

8006152959 OD3010-05MB02A, Fan Tubeaxial 5VDC Square — 30mm L x 30mm H Ball 3.3 CFM (0.092m³/min) 3 Wire Leads Hirschmann
3140,00 ₽
Описание
Fan Tubeaxial 5VDC Square — 30mm L x 30mm H Ball 3.3 CFM (0.092mВі/min) 3 Wire Leads
| Вес, г | 9.072 |
| Потребляемая мощность, Вт | 400 |
| Air Flow | 3.3 CFM (0.092mВі/min) |
| Fan Type | Tubeaxial |
| Series | OD3010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 10 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Sensor |
| Noise | 30.0dB |
| Approval Agency | CE, cURus |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 3 Wire Leads |
| Weight | 0.018 lb(8.16 g) |
| Width | 10.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 500 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.050A |
| Static Pressure | 0.15 in H2O(37.3 Pa) |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 9000 |
| Производительность,м.куб./мин. | 3.3 |
| Шум, дБA | 30 |
| Power (Watts) | 400mW |
| RPM | 9000 RPM |
| Voltage — Rated | 5VDC |
| Voltage Range | 4 ~ 5.5VDC |
Детали
| Бренд | Orion Fans |
|---|
