NMB Technologies

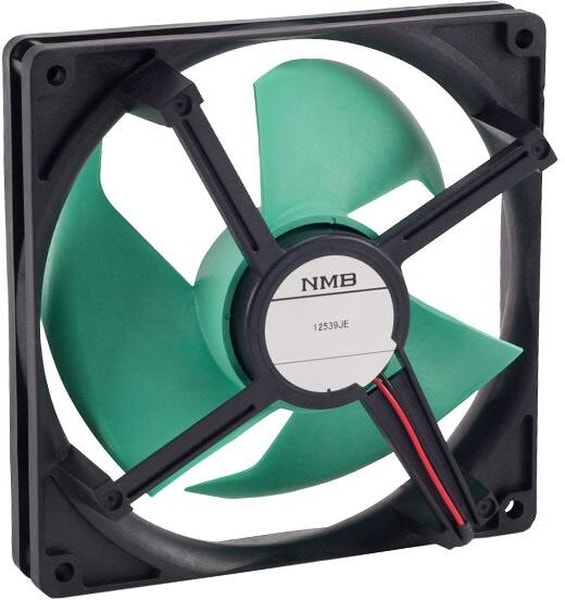

8006180825 12539JE-12L-BA-F0, FAN AXIAL 125.4X39MM 12VDC WIRE Hirschmann
5550,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 125.4mm L x 125.4mm H Ball 75.0 CFM (2.10mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 2.88 |
| Air Flow | 75.0 CFM (2.10mВі/min) |
| Fan Type | Tubeaxial |
| Series | 12539JE-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Features | Auto Restart |
| Noise | 34.0dB |
| Lifetime @ Temp. | 70000 Hrs @-20В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -40 ~ 104В°F(-40 ~ 40В°C) |
| Size / Dimension | Square-125.4mm L x 125.4mm H |
| Termination | 2 Wire Leads |
| Width | 39.00mm |
| Current Rating (Amps) | 0.240A |
| Static Pressure | 0.15 in H2O(37.4 Pa) |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 2300 |
| Производительность,м.куб./мин. | 75 |
| Power (Watts) | 2.88W |
| RPM | 2300 RPM |
| Voltage — Rated | 12VDC |
| Voltage Range | 7 ~ 13.2VDC |
Детали
| Бренд | NMB Technologies |
|---|
