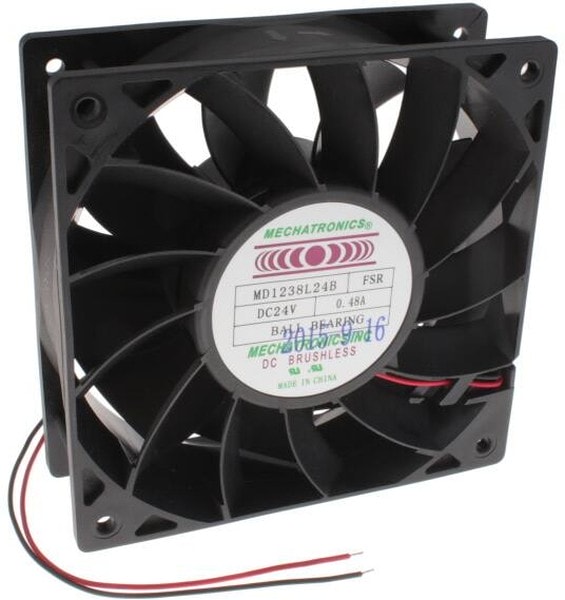

8006188720 MD1238L24B-FSR, Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 137.0 CFM (3.84m³/min) 2 Wire Leads Hirschmann
5400,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 137.0 CFM (3.84mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | MD1238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 52.0dB(A) |
| Approval Agency | cUL, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 0.906 lb(410.95 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.480A |
| Static Pressure | 0.42 in H2O(104.6 Pa) |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 137 |
Детали
| Бренд | Mechatronics |
|---|
