Orion Fans

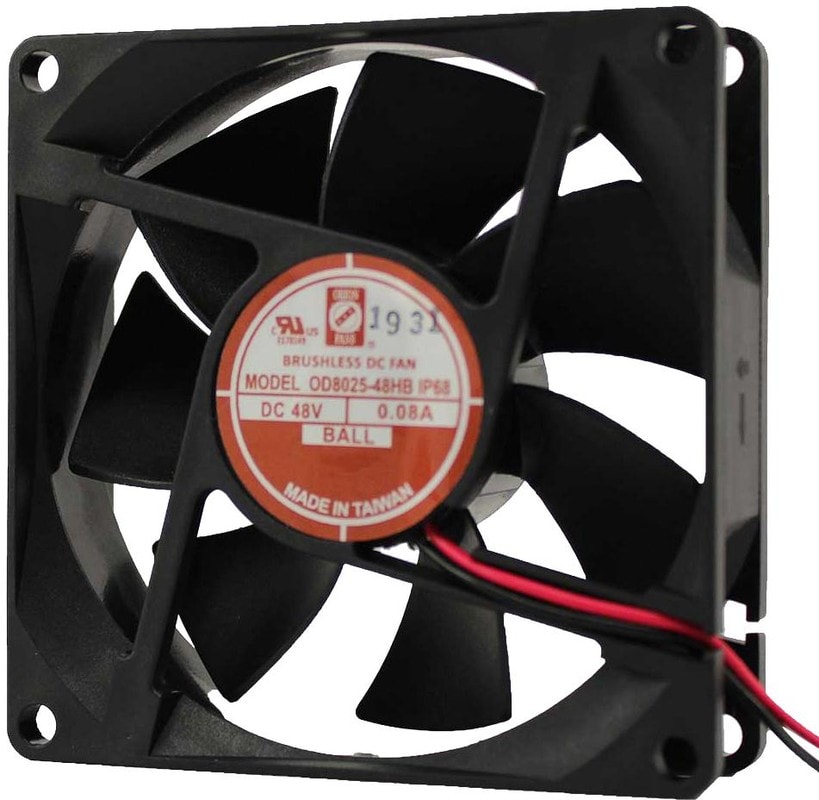

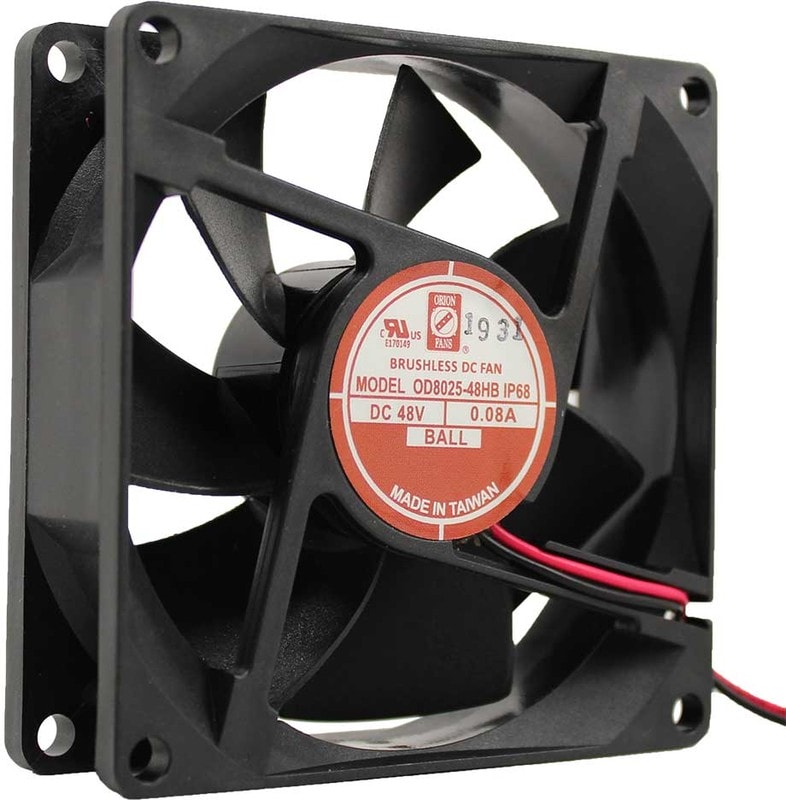

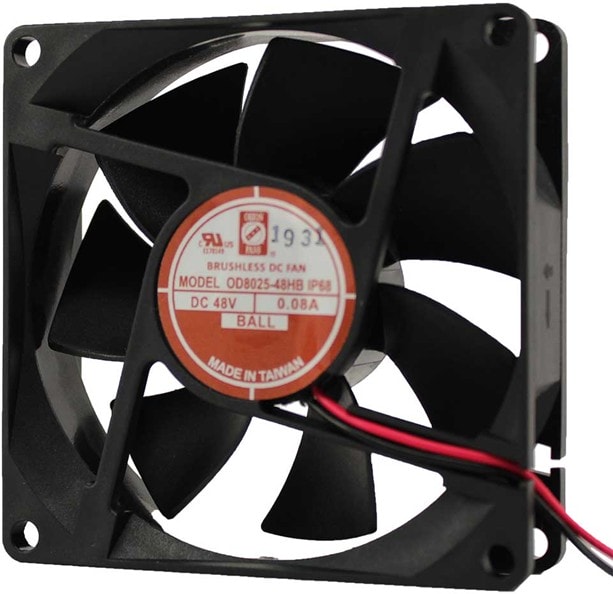

8006402464 OD8025-48HBIP68, DC Fans DC Axial Fan, 80x80x25mm, 48VDC, 40CFM, 3.8W, 0.08A, 33dBA, Ball, Wire, IP68 Hirschmann
4260,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 80mm L x 80mm H Ball 40.0 CFM (1.12m³/min) 2 Wire Leads
| Вес, г | 86 |
| Потребляемая мощность, Вт | 3.8 |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| Features | Auto Restart |
| IP Rating | IP68 |
| Noise | 33.0dB |
| Power Rating | 3.8W |
| Approval Agency | cURus, TUV |
| Operating Temperature | 5 ~ 149°F(-15 ~ 65°C) |
| Termination | 2 Wire Leads |
| Width | 25.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.23 in H2O(57.3 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 80mA |
| Air Flow — CFM | 40CFM |
| External Depth | 25mm |
| Fan Frame Size | 80mm |
| Fan Frame Type | Square |
| Noise Rating | 33dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD8025-IP68 Series |
| Rated Speed | 3300rpm |
| Частота вращения,об./мин. | 3300 |
| Производительность,м.куб./мин. | 40 |
| Шум, дБA | 33 |
| Supply Voltage VDC | 48V |
Детали
| Бренд | Orion Fans |
|---|
