Orion Fans

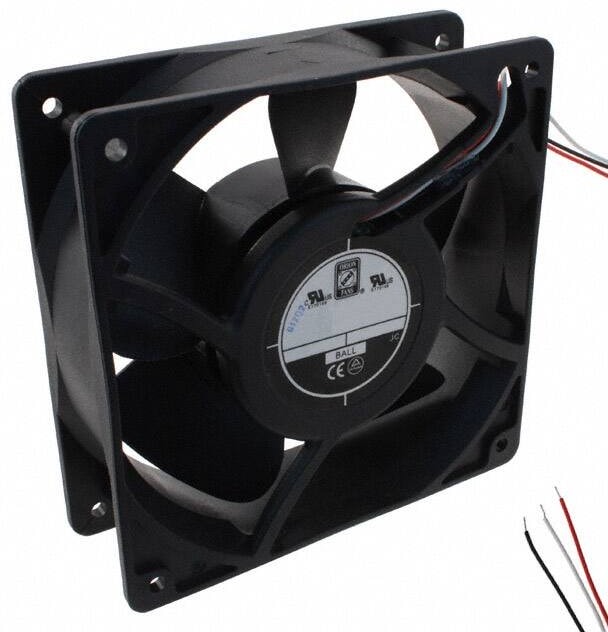

8006427943 OD1238-24HB01A, DC Fans DC Fan, 120x120x38mm, 24VDC, 105CFM, 43dBA, Ball, Wire, Open Collector Tach Hirschmann
5450,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 105.0 CFM (2.94mВі/min) 3 Wire Leads
| Вес, г | 448 |
| Потребляемая мощность, Вт | 7 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OD1238-> |
| Special Features | Tachometer |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 3pin |
| Product Category | DC Fan Salt Fog |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Noise | 43.0dB |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 3 Wire Leads |
| Width | 38.50mm |
| Current Rating (Amps) | 0.320A |
| Static Pressure | 0.24 in H2O(59.8 Pa) |
| Частота вращения,об./мин. | 2800 |
| Производительность,м.куб./мин. | 105 |
| Шум, дБA | 43 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Pressure | 0.469inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Polarity|Auto Restart |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38.5 |
| Voltage Rating (V) | 24 |
| Power Rating (W) | 12 |
| Nominal Speed (r/min) | 2895 |
| Maximum Airflow (CFM) | 124.1 |
| Noise Level (dB) | 44.1 |
| Bearings | Ball |
| Line Current (A) | 0.5 |
| Operating Input Voltage Range (V) | 16 to 26 |
Детали
| Бренд | Orion Fans |
|---|
