Comair Rotron

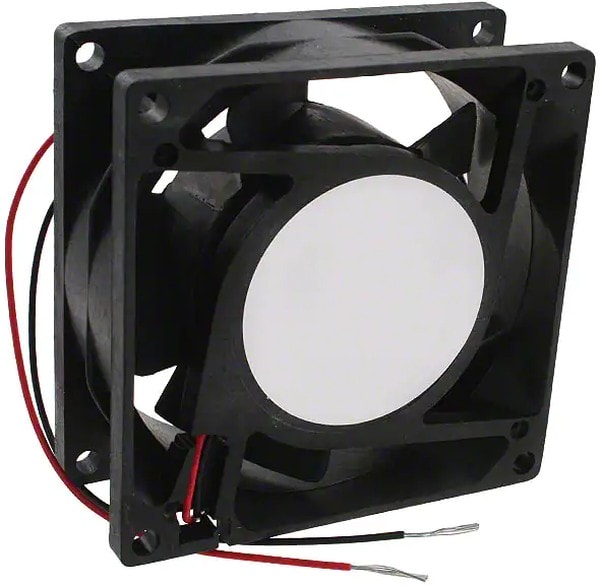

8006650410 19030615A, Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 33.0 CFM (0.924m³/min) 2 Wire Leads Hirschmann
6210,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 33.0 CFM (0.924mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 3.4 |
| Fan Type | Tubeaxial |
| Series | Sprint-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 40.9dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 78000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 185В°F(-10 ~ 85В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.397 lb(180.08 g) |
| Width | 32.00mm |
| Current Rating (Amps) | 0.280A |
| Static Pressure | 0.225 in H2O(56.0 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 33 |
| Voltage Range | 6 ~ 14VDC |
Детали
| Бренд | Comair Rotron |
|---|
