Orion Fans

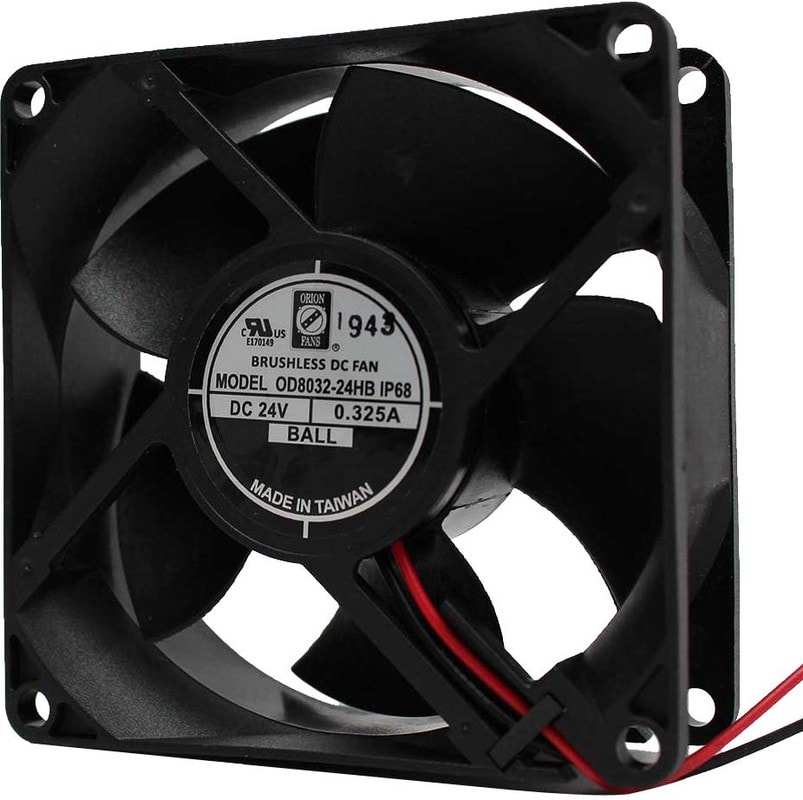

8006807327 OD8032-24HBIP68, Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 2 Wire Leads Hirschmann
5400,00 ₽
Описание
Трубка вентилятора, ось 24 В постоянного тока, квадратная — Шарик 80 мм Д x 80 мм В 2 вывода
| Потребляемая мощность, Вт | 7.8 |
| Fan Type | Tubeaxial |
| Series | OD8032-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 32 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| IP Rating | IP68 |
| Noise | 50.0dB |
| Power Rating | 9.6W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.261 lb(118.39 g) |
| Width | 32.00mm |
| Current Rating (Amps) | 0.330A |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.73 in H2O(181.8 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 400mA |
| Air Flow — CFM | 76.6CFM |
| External Depth | 32mm |
| Fan Frame Size | 80mm |
| Fan Frame Type | Square |
| Noise Rating | 50.1dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD8032-IP68 Series |
| Rated Speed | 5900rpm |
| Частота вращения,об./мин. | 6000 |
| Производительность,м.куб./мин. | 77 |
| Шум, дБA | 50 |
| Supply Voltage VDC | 24V |
Детали
| Бренд | Orion Fans |
|---|
