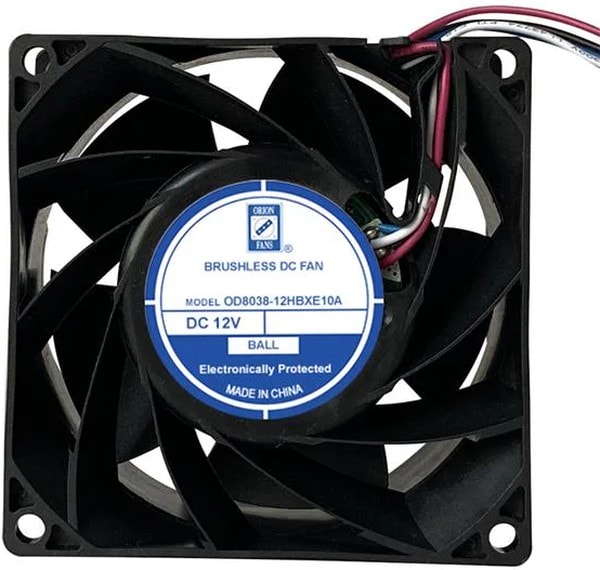

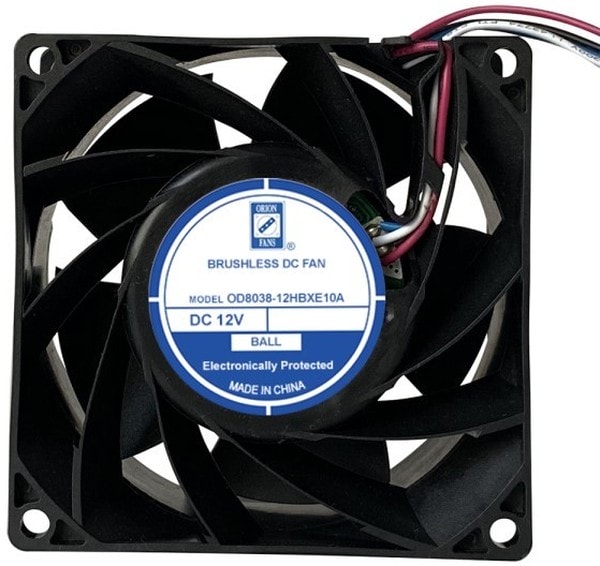

8006809842 OD8038-12HBXE10A, DC Fans Fan, High Speed/Static Pressure, 80x80x38mm, 12VDC, 141CFM, Ball, Wire, Tach/PWM Hirschmann
4930,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 141.2 CFM (3.95m³/min) 4 Wire Leads
| Вес, г | 361 |
| Потребляемая мощность, Вт | 49 |
| Air Flow | 141.2 CFM(3.95m³/min) |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Brand | Orion Fans |
| Factory Pack Quantity | 1 |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | PWM Control, Speed Sensor(Tach) |
| Current Type | DC |
| Noise | 71.0dB(A) |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| COO | CN |
| Housing Material | Polybutylene Terephthalate(PBT) |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Static Pressure | 3.9 in H2O(971.5 Pa) |
| Bearing Type | Ball |
| Pressure Type | 3.9 in H2O |
| Частота вращения,об./мин. | 13500 |
| Производительность,м.куб./мин. | 141 |
| Шум, дБA | 71 |
| Power (Watts) | 49 W |
| RPM | 13500 RPM |
| Voltage — Rated | 12VDC |
Детали
| Бренд | Orion Fans |
|---|
