Mechatronics

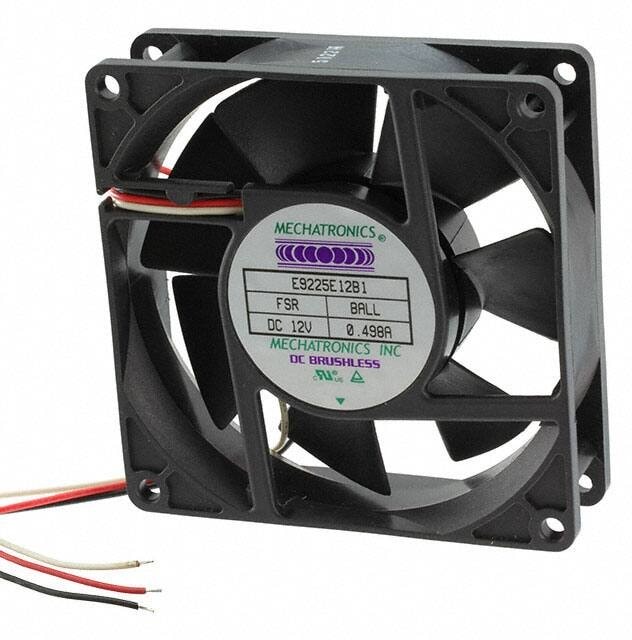

8006859354 E9225E12B1-FSR, Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 56.0 CFM (1.57m³/min) 3 Wire Leads Hirschmann
3740,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 56.0 CFM (1.57mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Series | E9225-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Speed Sensor(Tach), Thermal Overload Protector(T |
| Noise | 39.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 3 Wire Leads |
| Weight | 0.245 lb(111.13 g) |
| Width | 25.00mm |
| Current Rating (Amps) | 0.498A |
| Static Pressure | 0.28 in H2O(69.7 Pa) |
| Частота вращения,об./мин. | 3600 |
| Производительность,м.куб./мин. | 56 |
Детали
| Бренд | Mechatronics |
|---|
