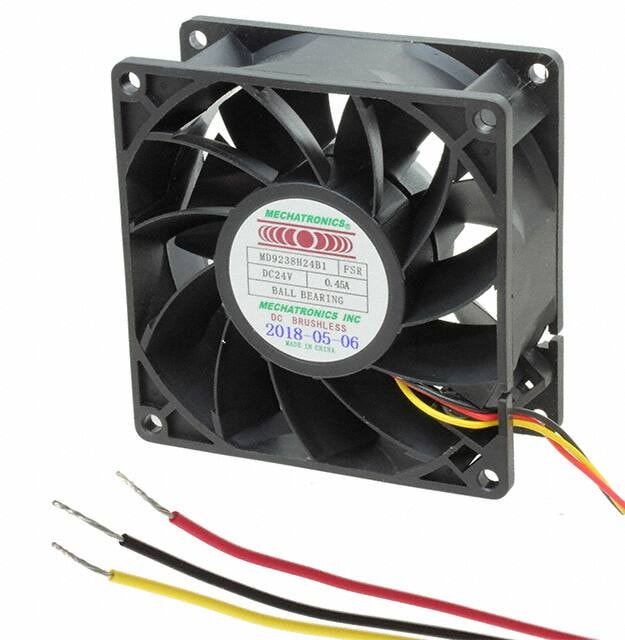

8006864328 MD9238H24B1-FSR, Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 100.7 CFM (2.82m³/min) 3 Wire Leads Hirschmann
4210,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 100.7 CFM (2.82mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Series | MD9238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Speed Sensor(Tach), Thermal Overload Protector(T |
| Noise | 53.5dB(A) |
| Approval Agency | CE, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 3 Wire Leads |
| Weight | 0.397 lb(180.08 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.450A |
| Static Pressure | 0.6 in H2O(149.5 Pa) |
| Частота вращения,об./мин. | 4400 |
| Производительность,м.куб./мин. | 100.7 |
Детали
| Бренд | Mechatronics |
|---|
