NMB Technologies

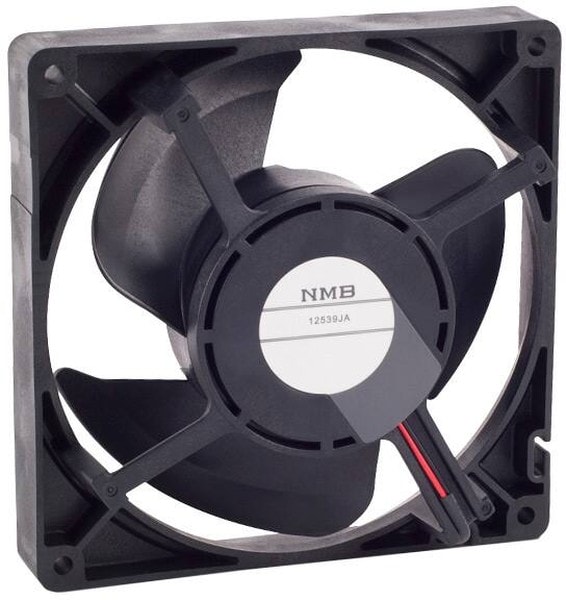

8006877818 12539JA-12M-BA-00, Fan Tubeaxial 12VDC Square — 125.4mm L x 125.4mm H Ball 57.3 CFM (1.60m³/min) 2 Wire Leads Hirschmann
4680,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 125.4mm L x 125.4mm H Ball 57.3 CFM (1.60mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 1.08 |
| Fan Type | Tubeaxial |
| Series | 12539JA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 125.4×125.4 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Features | Auto Restart |
| Noise | 26.5dB |
| Lifetime @ Temp. | 100000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-125.4mm L x 125.4mm H |
| Termination | 2 Wire Leads |
| Width | 39.00mm |
| Current Rating (Amps) | 0.090A |
| Static Pressure | 0.12 in H2O(29.9 Pa) |
| Частота вращения,об./мин. | 1950 |
| Производительность,м.куб./мин. | 57.3 |
| Voltage Range | 7 ~ 13.8VDC |
Детали
| Бренд | NMB Technologies |
|---|
