Orion Fans

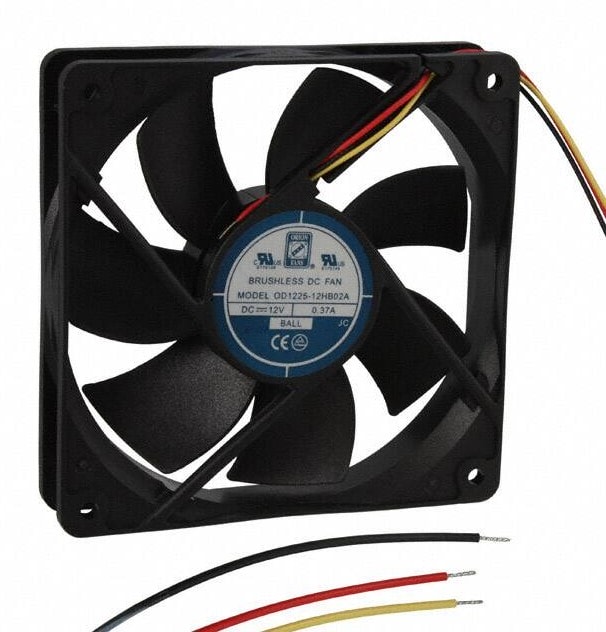

8006881061 OD1225-12HB02A, Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 120.0 CFM (3.36m³/min) 3 Wire Leads Hirschmann
5500,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 89.0 CFM (2.49mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 5 |
| Fan Type | Tubeaxial |
| Series | OD1225-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Sensor |
| Noise | 39.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 3 Wire Leads |
| Width | 25.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.370A |
| Static Pressure | 0.14 in H2O(34.9 Pa) |
| Частота вращения,об./мин. | 2200 |
| Производительность,м.куб./мин. | 89 |
Детали
| Бренд | Orion Fans |
|---|
