Orion Fans

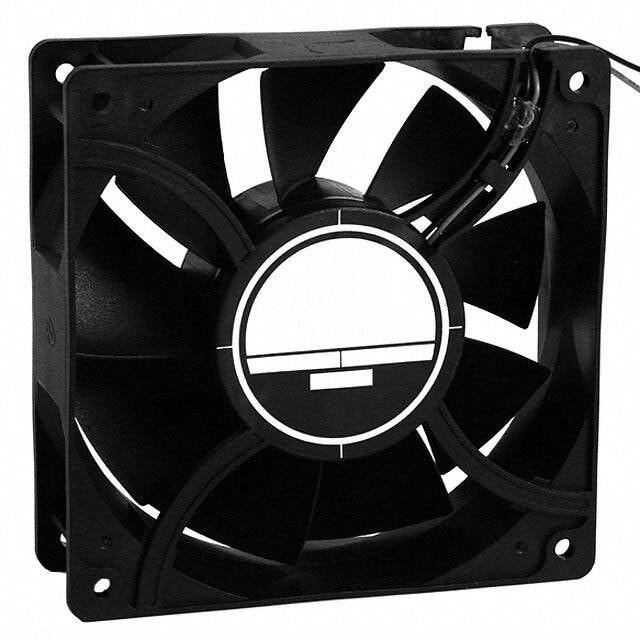

8006893760 OD1238-24MBXC, FAN AXIAL 120X38.5MM 24VDC WIRE Hirschmann
5770,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 175.0 CFM (4.90mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 16 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OD1238 XC-> |
| Special Features | High Performance |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38.5 |
| Питание | 2pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 57.0dB |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 38.50mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.680A |
| Static Pressure | 0.51 in H2O(127.0 Pa) |
| Частота вращения,об./мин. | 3800 |
| Производительность,м.куб./мин. | 175 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.52inH2O |
| Minimum Operating Temperature (°C) | -10 |
| Protection | Auto Restart|Polarity |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38.5 |
| Voltage Rating (V) | 24 |
| Power Rating (W) | 16.4 |
| Nominal Speed (r/min) | 3750 |
| Maximum Airflow (CFM) | 160 |
| Noise Level (dB) | 58 |
| Bearings | Ball |
| Line Current (A) | 0.68 |
| Operating Input Voltage Range (V) | 16 to 26.4 |
Детали
| Бренд | Orion Fans |
|---|
