Wakefield-Vette

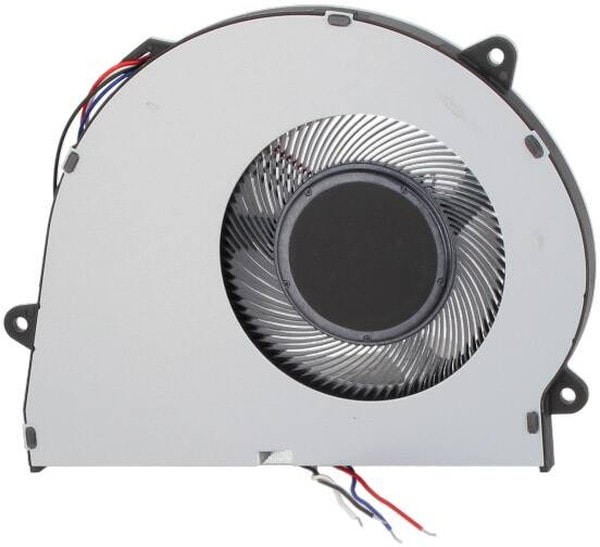

8006930259 DB0870605H1A-BT0, Fan Blower 5VDC Rectangular/Rounded — 74.5mm L x 90mm H Ball 5.7 CFM (0.160m³/min) 4 Wire Leads Hirschmann
3220,00 ₽
Описание
Fan Blower 5VDC Rectangular/Rounded — 74.5mm L x 90mm H Ball 5.7 CFM (0.160mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 2.5 |
| Fan Type | Blower |
| Series | Slim-Line-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 74.5×90 |
| Рабочее напряжение,В | 5 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 41.9dB(A) |
| Lifetime @ Temp. | 50000 Hrs @ 40В°C |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-74.5mm L x 90mm H |
| Termination | 4 Wire Leads |
| Weight | 0.102 lb(46.27 g) |
| Width | 5.52mm |
| Current Rating (Amps) | 0.500A |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.624 in H2O(155.4 Pa) |
| Частота вращения,об./мин. | 4600 |
| Производительность,м.куб./мин. | 5.7 |
| Voltage Range | 3.5 ~ 5.5VDC |
Детали
| Бренд | Wakefield-Vette |
|---|
