Sanyo Denki

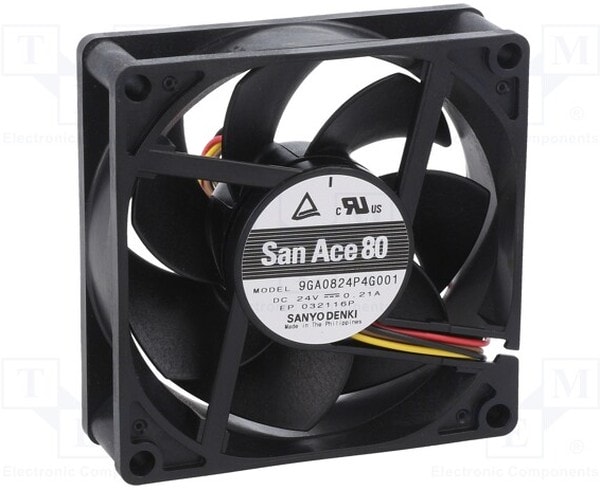

8006986754 9GA0824P4G001, Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 67.4 CFM (1.89m³/min) 4 Wire Leads Hirschmann
5660,00 ₽
Описание
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
| Air Flow | 114.5m³/h |
| Mounting | Flange Mount |
| Series | 9GA Type |
| Special Features | Low Noise|Low Power Consumption |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Manufacturer | SANYO DENKI |
| Product Category | DC Fan |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 72 |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Operating Temperature | -20…70°C |
| Width | 80mm |
| Enclosure material | plastic |
| Fan efficiency | 114.6m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x4 |
| Type of fan | DC |
| Housing Material | Plastic |
| Current Rating | 0.21A |
| Part # Aliases | 66W6393 |
| Pressure Type | 15 mmAq |
| Tradename | San Ace 80 |
| AC or DC Operation | DC |
| Fan dimensions | 80x80x25mm |
| Sensor Type | Pulse |
| Cable length | 0.3m |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.6inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Polarity |
| Shape | Square |
| Compliance | CSA; TUV; UL |
| Size (Metric) (mm) | 80 X 80 X 25 |
| Rotational rate/speed | 6800rpm |
| Operating Input Voltage Range (V) | 21.6 to 26.4 |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
Детали
| Бренд | Sanyo Denki |
|---|
