Delta Electonics

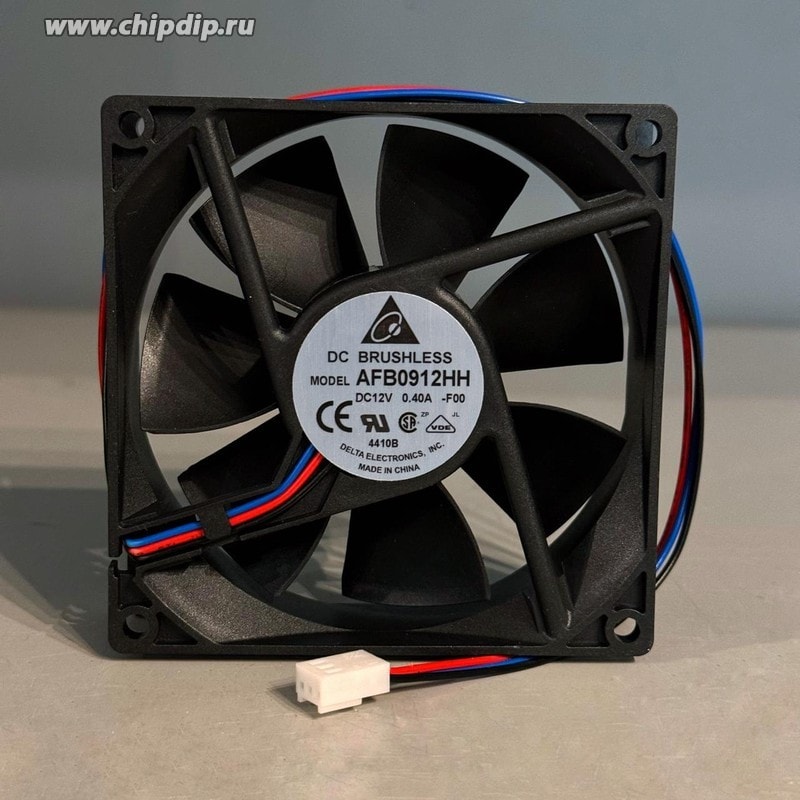

8007079271 Вентилятор Delta Electronics AFB0912HH 92×25мм 12V 0.4A Hirschmann
3890,00 ₽
Описание
AFB Series 3200 RPM 92 x 92 x 25.4 mm 57.92 CFM 12 VDC 2-Wire Ball Bearing Fan
| Вес, г | 300 |
| Потребляемая мощность, Вт | 3 |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Brand | Delta Electronics |
| Factory Pack Quantity | 72 |
| Manufacturer | Delta Electronics |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Locked Rotor Sensor |
| Airflow | 57.9 CFM(1.64 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| Noise | 38 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 3 W |
| Termination Style | Wire Leads-2 |
| Type | Tubeaxial |
| Termination | Lead Wire |
| Housing Material | Plastic |
| Maximum Airflow | 57.92(cfm) |
| speed | 3200 RPM |
| Bearing Type | Ball |
| Pressure Type | 5.6 mmAq |
| Ток,А | 0.4 |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 1.64 |
| Шум, дБA | 38 |
| Maximum Pressure | 0.221 |
| Product Height (mm) | 25.4(mm) |
| Product Length (mm) | 92(mm) |
| Product Diameter (mm) | Not Required(mm) |
| Operating Frequency | Not Required(Hz) |
| Operating Input Voltage Range | 7 TO 13.8 |
| Mounting Style | Flange |
| Fan Rotation | Clockwise |
| Line Current | 0.25(A) |
| Operating Temp Range | -10C to 70C |
| Operating Temperature (Max) | 70C |
| Operating Temperature (Min) | -10C |
| Rad Hardened | No |
| Speed (Nominal) | 3200(rpm) |
Детали
| Бренд | Delta Electonics |
|---|
