Sanyo Denki
8007480987 9HV0912P4G0011, DC Fans Fan, 92x92x25mm, 12VDC, 118CFM, High Static Pressure/Airflow, Ribless, Tach/PWM Hirschmann
9870,00 ₽
Описание

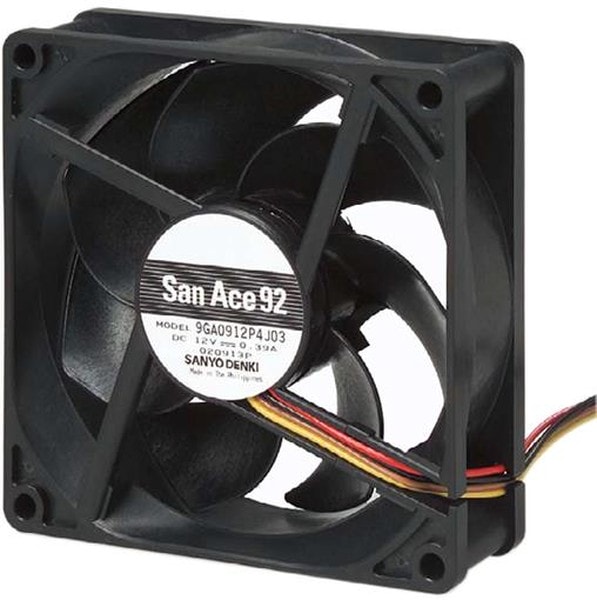

San Ace 92 9HV High Static Pressure DC Fans
SSan Ace 92 9HV High Static Pressure DC Fans deliver a maximum static pressure of 1.12inch H 2 O and a maximum airflow of 118 CFM. These fans are available with a rated voltage of 12V DC, 24V DC, or 48V DC and come in two sizes 92mm x 92mm x 25mm and 92mm x 92mm x 38mm. The DC Fans feature a PWM control function to control fan speed, lower noise, and improve energy efficiency. The San Ace 92 9HV high static pressure fans are designed for cooling high-density equipment such as projectors, digital signage, networking and telecom equipment, and medical devices.
| Вес, г | 150 |
| Series | 9HV Type |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Airflow | 118 CFM(3.3 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| Factory Pack Quantity: Factory Pack Quantity | 28 |
| Noise | 56 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 14.76 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Housing Material | Plastic |
| speed | 7350 RPM |
| Bearing Type | Ball |
| Pressure Type | Static Pressure |
| Tradename | San Ace 92 |
| Life | 40000 Hour |
Детали
| Бренд | Sanyo Denki |
|---|
