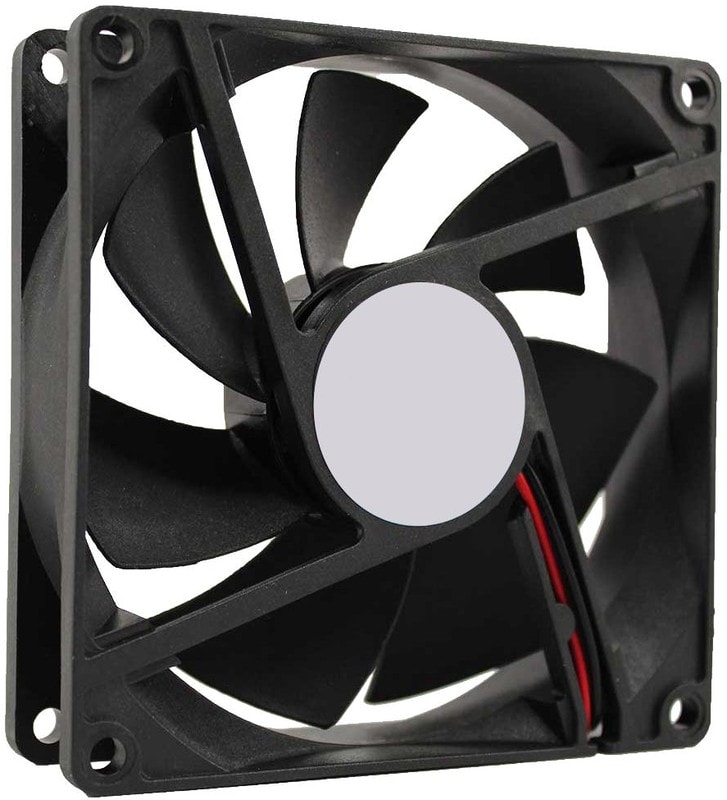

8008678434 OD9225-48HBIP68, Fan Tubeaxial 48VDC Square — 92mm L x 92mm H Ball 50.0 CFM (1.40m³/min) 2 Wire Leads Hirschmann
5680,00 ₽
IP68-Rated Harsh Environment AC/DC/EC Fans Orion Fans IP68-Rated Harsh Environment AC/DC/EC Fans protect against dust, moisture, salt fog, salt spray, temperature changes, humidity, and more. These IP68-rated fans are designed for demanding outdoor and washdown applications, including oil/gas, alternative energy, commercial refrigeration, food/beverage processing, marine, outdoor machinery, outdoor telecom systems, transportation, and more. The IP68-Rated Harsh Environment AC/DC/EC Fans can be quickly integrated into customer designs. Offered in 60mm, 120mm, 172mm, and 254mm frame sizes, the EC fans feature energy-efficient electronically commutated motors with ATEX certification for Zone 2. Orion DC and EC fans are available with special functions to meet specific application demands, including alarm, tachometer, thermistor speed control, temperature sensor, and more.
| Потребляемая мощность, Вт | 4.3 |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Brand | Orion Fans |
| Factory Pack Quantity | 20 |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Auto Restart, Polarity Protection |
| Current Type | DC |
| IP Rating | IP68 |
| Power Rating | 4.3W |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| COO | TW |
| Housing Material | Polybutylene Terephthalate(PBT) |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Current Rating | 90mA |
| Pressure Type | 0.24 in H2O |
| Air Flow — CFM | 49.8CFM |
| External Depth | 25mm |
| Fan Frame Size | 92mm |
| Fan Frame Type | Square |
| Noise Rating | 35dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD9225-IP68 Series |
| Rated Speed | 2900rpm |
| Частота вращения,об./мин. | 2900 |
| Производительность,м.куб./мин. | 50 |
| Шум, дБA | 32 |
| Supply Voltage VDC | 48V |
| Бренд | Orion Fans |
|---|
