EBM-PAPST

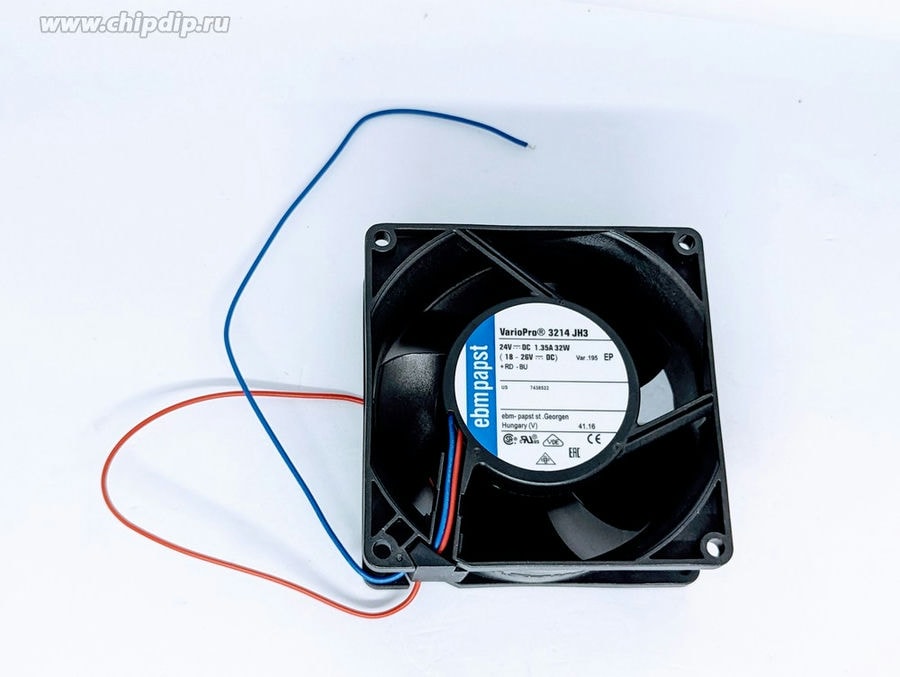

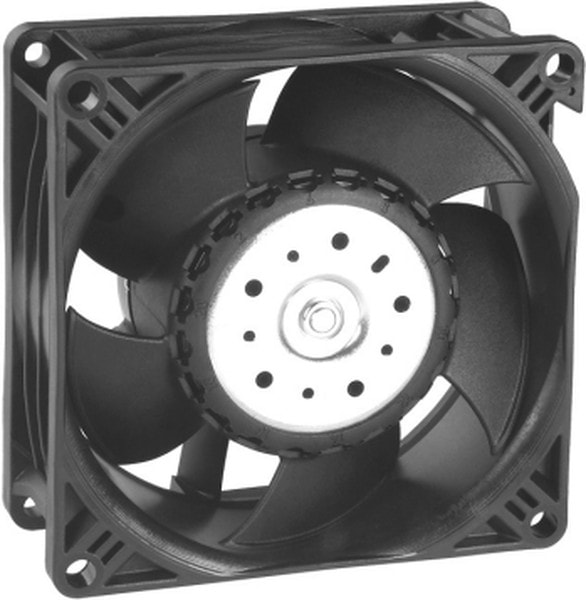

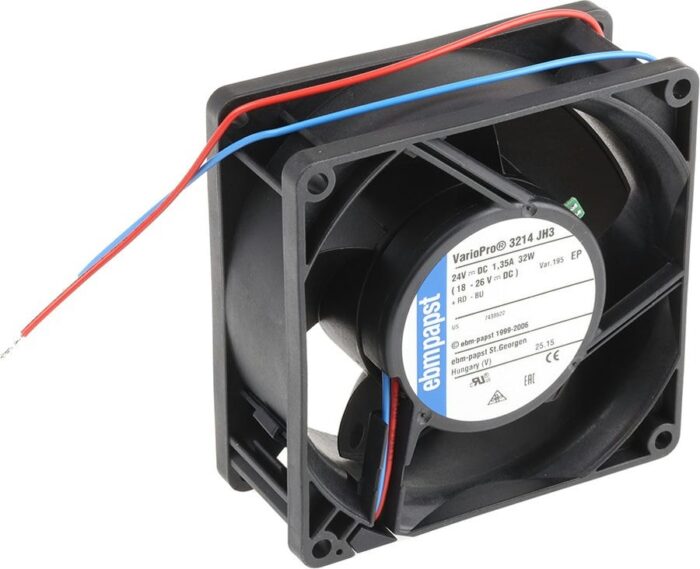

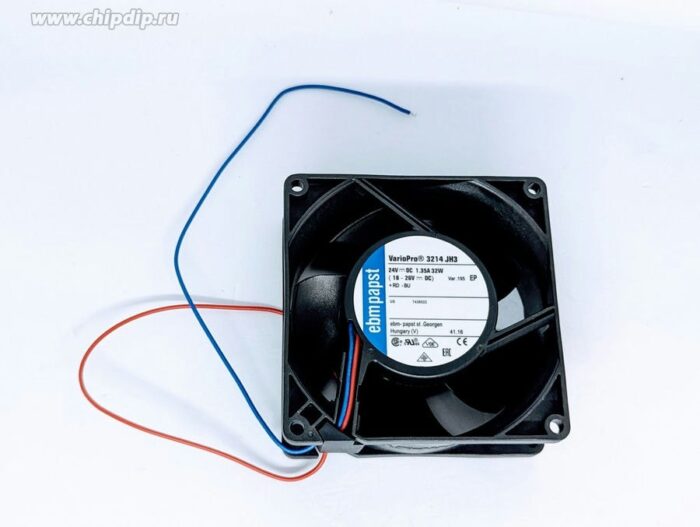

8010349525 Вентилятор Ebmpapst VarioPro 3214JH3 24V 1.35A 32W 92×38 2pin Hirschmann
8820,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 139.5 CFM (3.91mВі/min) 2 Wire Leads
| Вес, г | 280 |
| Air Flow | 230m³/h |
| Fan Type | Tubeaxial |
| Series | 3200J-> |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Noise | 69.0dB(A) |
| Approval Agency | CSA, UL, VDE |
| Lifetime @ Temp. | 65000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.617 lb(279.87 g) |
| Width | 92mm |
| Power consumption | 30 W |
| Rated voltage | 24 V |
| Sound pressure level | 69 db |
| speed | 11000 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 237 m³/h |
| Производительность,м.куб./мин. | 3.95 |
| Шум, дБA | 69 |
| AC or DC Operation | DC |
| Video File | S Force Fans |
| Voltage Range | 12 ~ 27.6VDC |
| Разъём питания, Pin | 2pin |
Детали
| Бренд | EBM-PAPST |
|---|
