EBM-PAPST

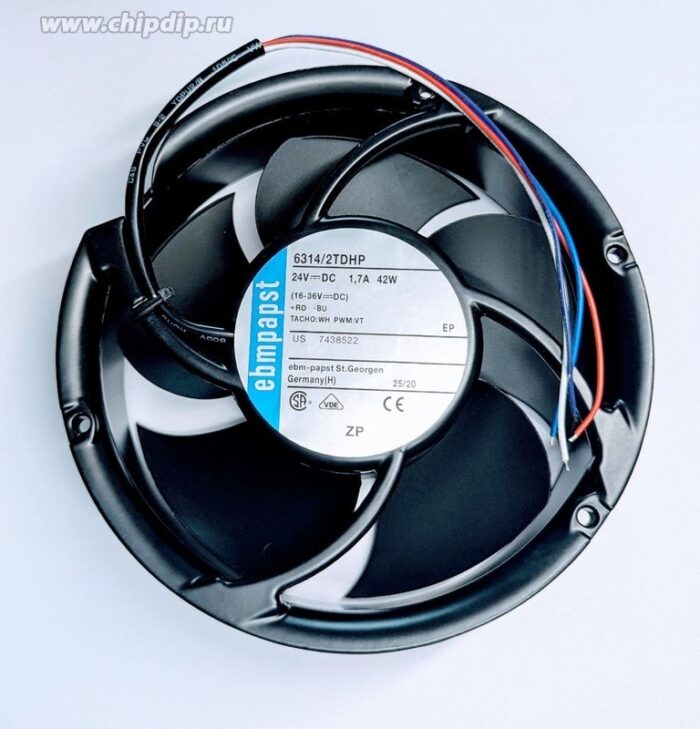

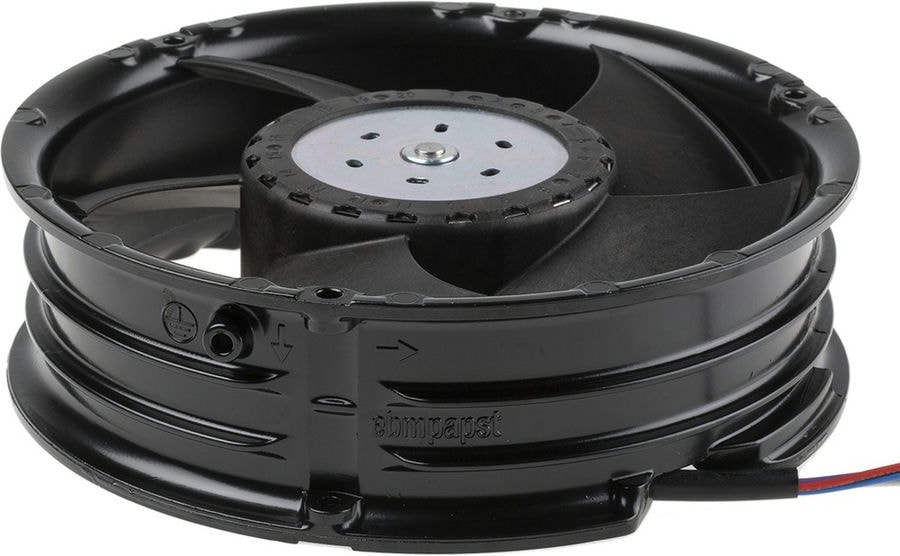

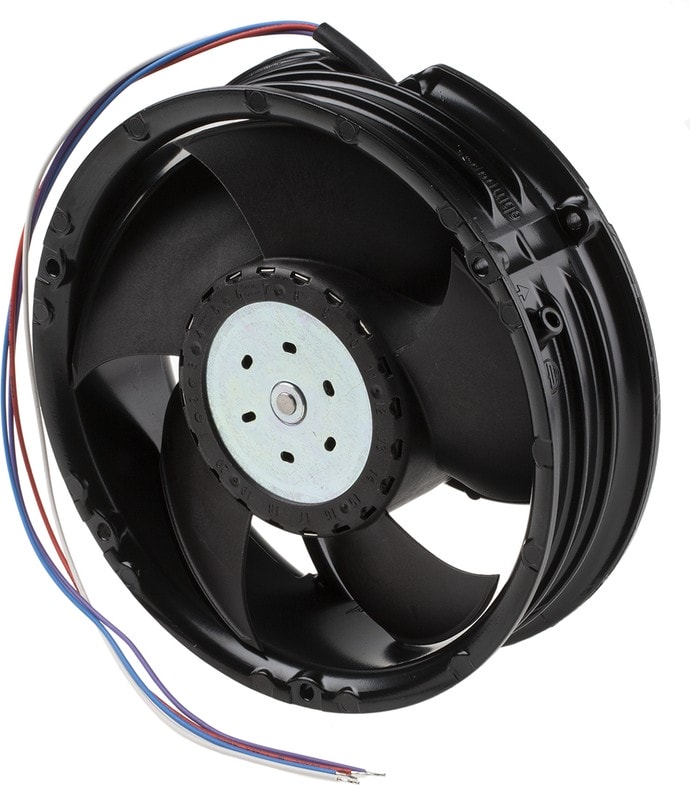

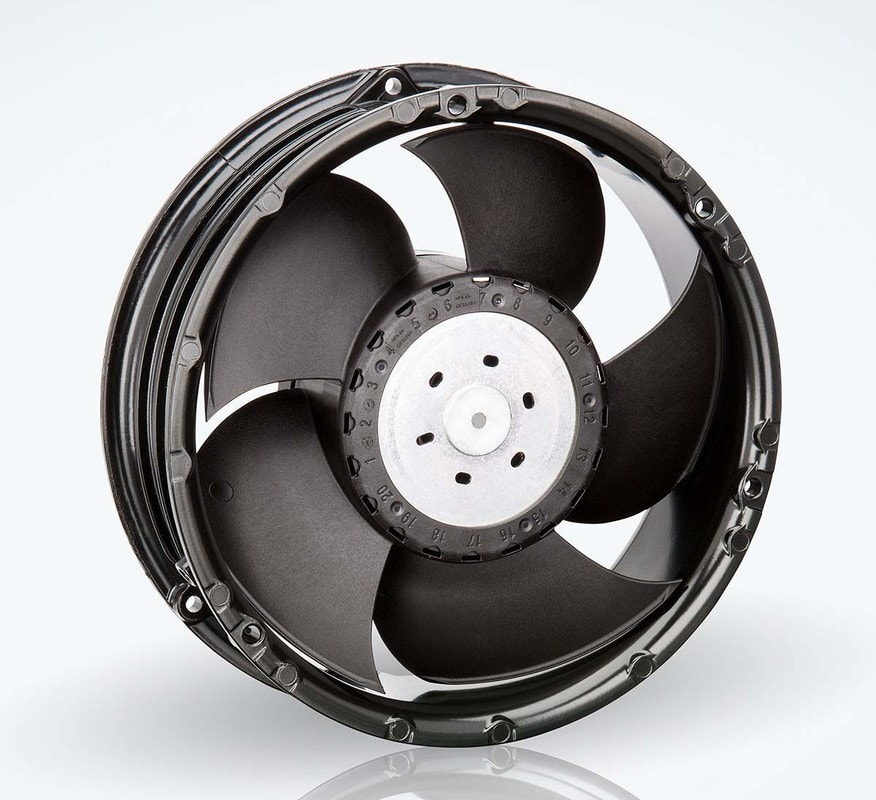

8015506635 Вентилятор Ebmpapst 6314/2TDHP 24V 42W 172×51 круг () Hirschmann
14910,00 ₽
Описание
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications.
| Вес, кг | 1.5 |
| Air Flow | 600m³/h |
| Noise Level | 60 dB |
| Special Features | Tachometer Output, External Temperature Sensor, PWM speed control |
| Размеры рамы,мм | 172×172 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 51 |
| ECCN | EAR99 |
| IP Rating | IP20 |
| Power Rating | 40 W |
| Operating Temperature | -20 to 70 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| COO | DE |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 353 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| AC or DC Operation | DC |
| Sensor Type | PWM, Tachometer |
| Termination Type | Lead Wire |
| Tachometer Signal | Yes |
| PWM Control Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
