Orion Fans

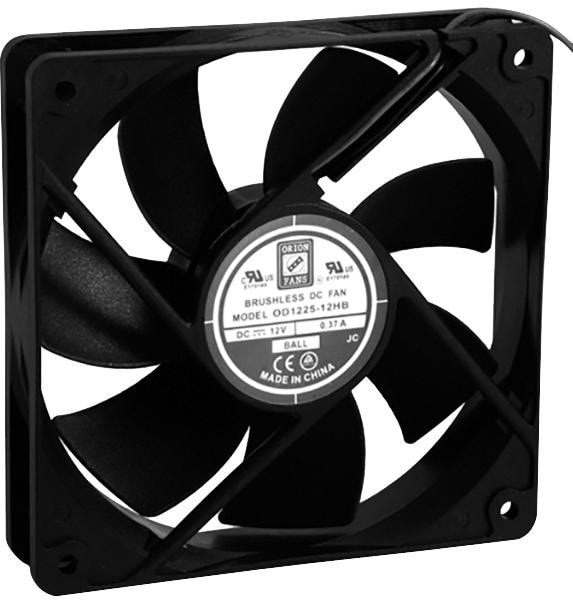

8015579360 OD1225-12HB, DC Axial Fan, 12 V, Square, 120 mm, 25.4 mm, Ball Bearing, 89 CFM Hirschmann
10730,00 ₽
Описание
| Вес, г | 154 |
| Потребляемая мощность, Вт | 5 |
| Noise Level | 39 dB |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25.4 |
| Питание | 2pin |
| ECCN | EAR99 |
| IP Rating | IP55 |
| Power Rating | 5W |
| Operating Temperature | -20 to 75 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 89 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Current Rating | 370mA |
| Air Flow — CFM | 89CFM |
| External Depth | 25.4mm |
| Fan Frame Size | 120mm |
| Fan Frame Type | Square |
| Noise Rating | 39dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD1225 Series |
| Rated Speed | 2200rpm |
| Частота вращения,об./мин. | 2200 |
| Производительность,м.куб./мин. | 89 |
| Шум, дБA | 39 |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
