EBM-PAPST
8016167824 Вентилятор Ebmpapst 8414NML 24V DC 60mA 1.0W 80×25 2pin Hirschmann
4120,00 ₽
Описание

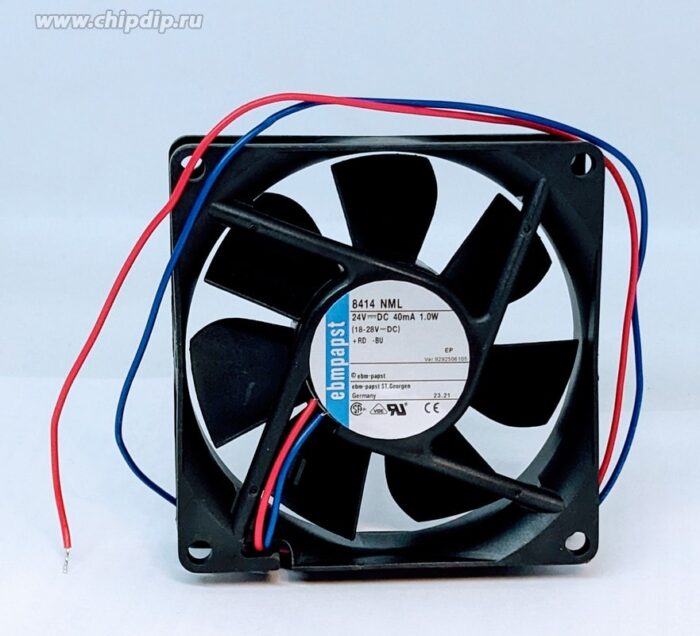

The 8414NML is a 24VDC standard or basic speed Axial Fan with speed signal, Go/No-go alarm and alarm with limit speed. This fan comes with an external temperature sensor, internal temperature sensor, PWM control input and analogue control input. It features moisture protection, ball bearing and wire leaded power connection. Fiberglass-reinforced plastic (PBT) housing and fiberglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
| Вес, г | 95 |
| Noise Level | 21 dB |
| Special Features | None |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| Power Rating | 1.1 W |
| Operating Temperature | -20 to 70 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| COO | US |
| Housing Material | Plastic |
| Maximum Airflow | 26.5 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Разъём питания, Pin | 2pin |
Детали
| Бренд | EBM-PAPST |
|---|
