Sanyo Denki

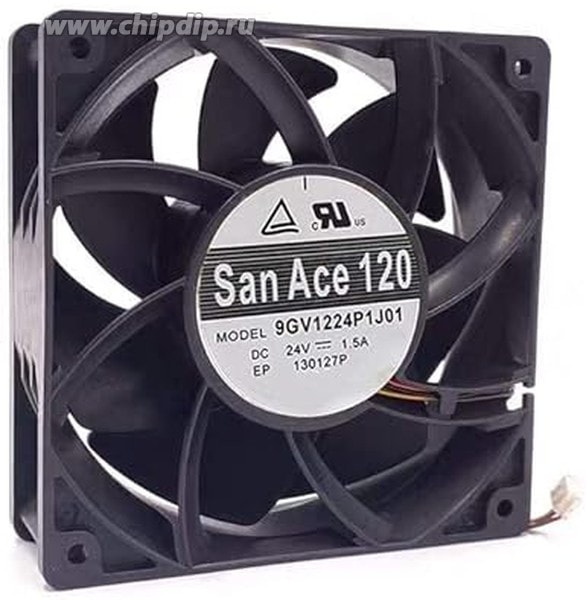

8017874451 Вентилятор Sanyo Denki San Ace 120 9GV1224P1J01 24V 1.5A 120X38 4pin Hirschmann
10110,00 ₽
Описание

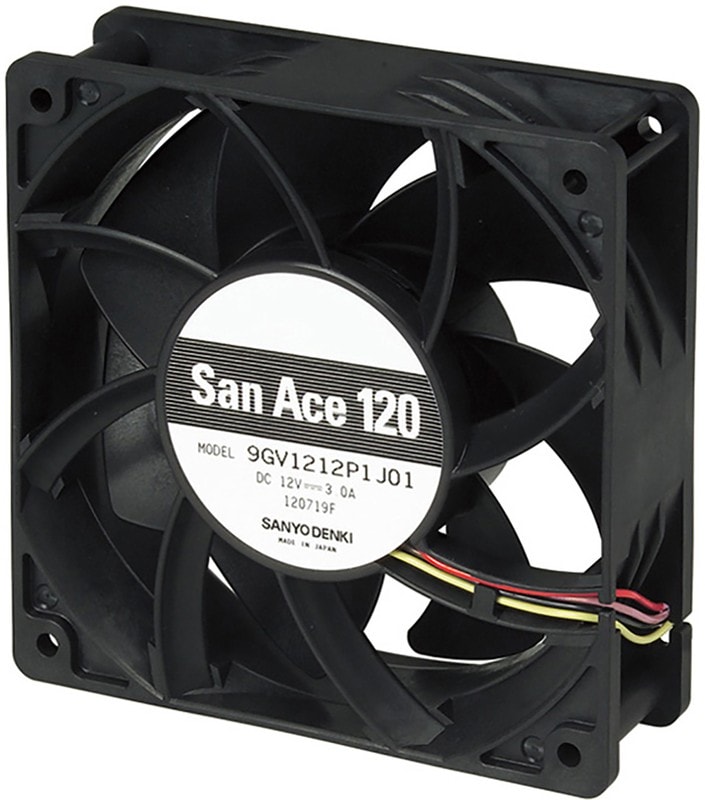

9GV Type Guide Vane Fans
Sanyo Denki 9GV-Type Guide Vane Fans utilize Guide Vane technology, which achieves industry-leading performance with high airflow and back pressure while reducing power. These axial or tubeaxial fans are available with a 12V DC, 24V DC, or 48V DC operating supply voltage. The 9GV-type fans feature a 13.1CFM to 1112CFM airflow range, a 3000RPM to 24.000RPM speed range, a 43dBA to 81dBA noise range, and a 2.52W to 600W power rating range. The models with a PWM control function also have a motor protection system that includes a current blocking function and reverse polarity protection.
| Вес, г | 359 |
| Потребляемая мощность, Вт | 36 |
| Air Flow | 380.6m³/h |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 64dBA |
| Series | 9GV Type |
| Special Features | Sensor |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fan |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | PWM Control, Speed Sensor(Tach) |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 21 |
| Noise | 64.0dB(A) |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 120mm |
| Enclosure material | plastic |
| Fan efficiency | 381m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | leads x4 |
| Type of fan | DC |
| Housing Material | Plastic |
| Power consumption | 36W |
| Static Pressure | 1.45 in H2O(361.2 Pa) |
| Bearing Type | Ball |
| Current Rating | 1.5A |
| Part # Aliases | 3784326 06W4773 |
| Pressure Type | 36 mmAq |
| Ток,А | 1.5 |
| Частота вращения,об./мин. | 6400 |
| Производительность,м.куб./мин. | 224 |
| Шум, дБA | 64 |
| Power (Watts) | 36 W |
| RPM | 6400 RPM |
| Voltage — Rated | 24VDC |
| Tradename | San Ace 120 |
| AC or DC Operation | DC |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| Flammability rating | UL94V-1 |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 1.45inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Compliance | CSA; TUV; UL |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Lead Length | 0.3m |
| Kind of Bearing | ball |
| Rotational rate/speed | 6400rpm |
| Operating Input Voltage Range (V) | 20.4 to 27.6 |
| Разъём питания, Pin | 4pin |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
| Operating voltage | 20.4…27.6V DC |
Детали
| Бренд | Sanyo Denki |
|---|
