WAKEFIELD THERMAL

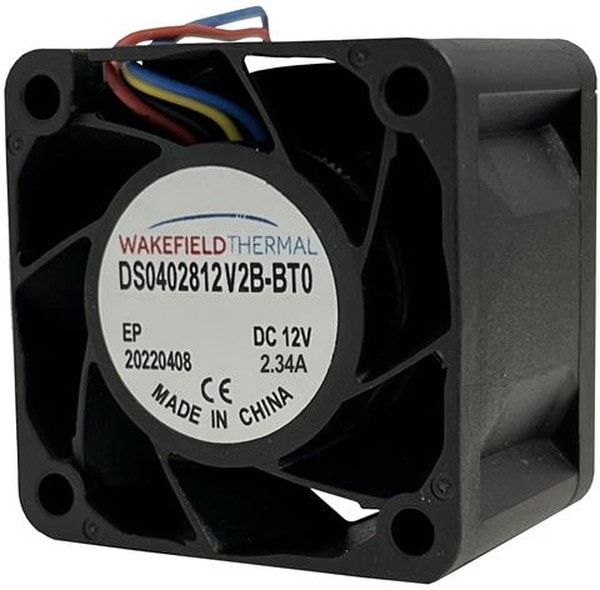

8020263949 DS0402812V2B-BT0, DC Fans DC Server Fan, 40x40x28mm, 12VDC, 35.0CFM, 2.34A, 28.08W, 67.5dBA, Ball, 4 Leads Hirschmann
4250,00 ₽
Описание
DS Series DC Server Fans
Wakefield-Vette DS Series DC Server Fans feature a two-ball bearing system, 10MΩ insulation resistance at 500V DC, and a -10°C to +70°C operating temperature range. These fans are available in dimensions from 40mm x 28mm to 120mm x 38mm and come with a 12V voltage rating. The advantage of the two-ball bearing system is that due to the small point load of the balls, less power is required to start rotation as they have less stiction than other bearing systems. Wakefield-Vette DS Series DC Server Fans provide ultra-high airflow and are designed for high-density applications.
| Вес, г | 0.01 |
| Series | DS |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 28 |
| Brand | Wakefield-Vette |
| Manufacturer | Wakefield-Vette |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Airflow | 35.02 CFM(1 m3/min) |
| Current Type | DC |
| Depth | 28 mm |
| Factory Pack Quantity: Factory Pack Quantity | 180 |
| Noise | 67.5 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 28.08 W |
| Termination Style | Wire Leads-4 |
| Type | Tubeaxial |
| Housing Material | Polybutylene Terephthalate(PBT) |
| speed | 30000 RPM |
| Bearing Type | Ball |
| Pressure Type | 5.888 inAq |
| Life | 70000 Hours |
| Lead Length | 300 mm |
Детали
| Бренд | WAKEFIELD THERMAL |
|---|
