EBM-PAPST

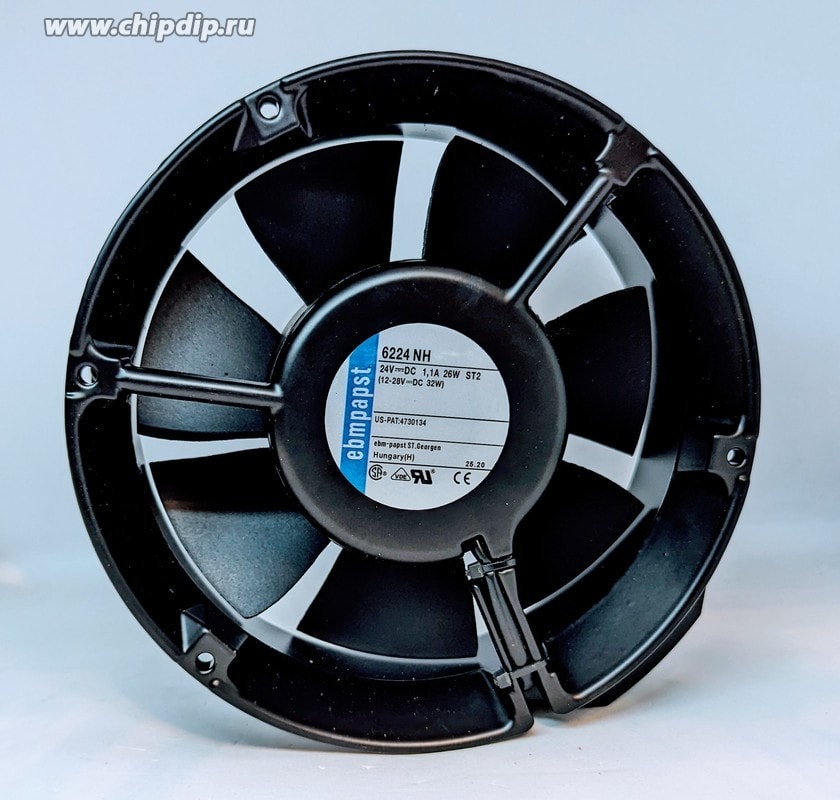

8022078759 Вентилятор Ebmpapst 6224NH 24V DC 1.1A 26W 172×51 круг Hirschmann
13910,00 ₽
Описание
The 6224NH is a 24VDC Axial Fan with ball bearing and electronically commutated external rotor motor, fully integrated communication electronics with electronic protection against reverse polarity, blocking, electronic motor current limitation in the start-up phase when rotor is blocked, mounting from either face using two 4 fiberglass-reinforced plastic PA impeller and metal fan housing 3mm holes, terminal power connection. Axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
| Вес, г | 820 |
| Noise Level | 61 dB |
| Series | 6200N |
| Special Features | None |
| Размеры рамы,мм | 172×172 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 51 |
| Brand | ebm-papst |
| Manufacturer | ebm-papst |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Locked Rotor Sensor |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Power Rating | 26 W |
| Termination Style | Quick Connect Terminal |
| Type | Tubeaxial |
| Operating Temperature | -20 to 55 °C |
| Termination | Terminals |
| Category | DC Fan |
| COO | DE |
| Housing Material | Aluminum |
| Maximum Airflow | 282CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Производительность,м.куб./мин. | 282.5 |
| Шум, дБA | 61 |
Детали
| Бренд | EBM-PAPST |
|---|
