EBM-PAPST

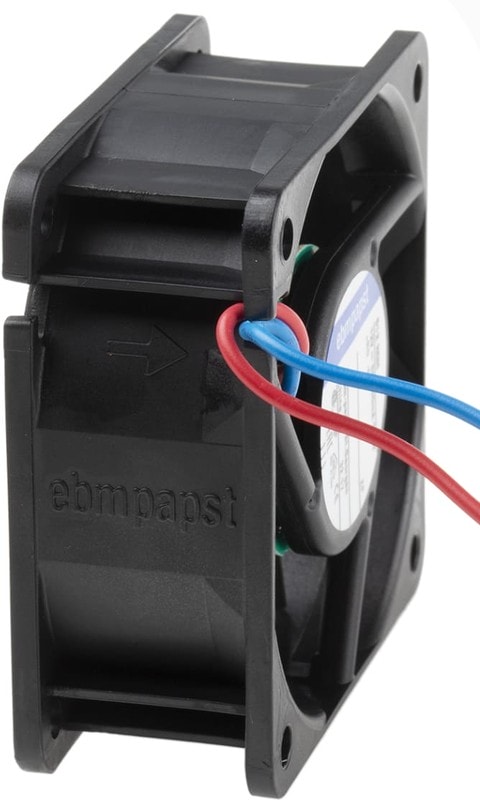

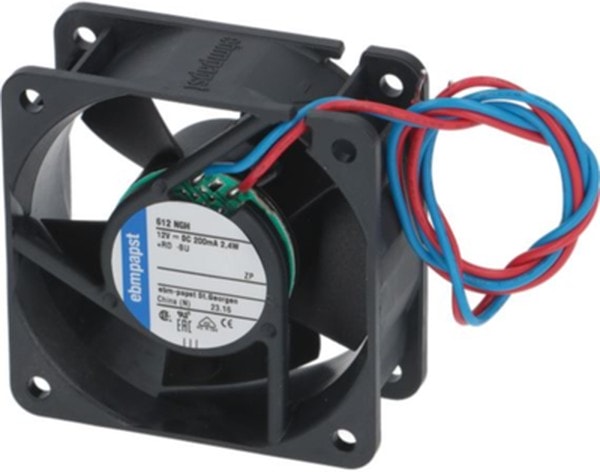

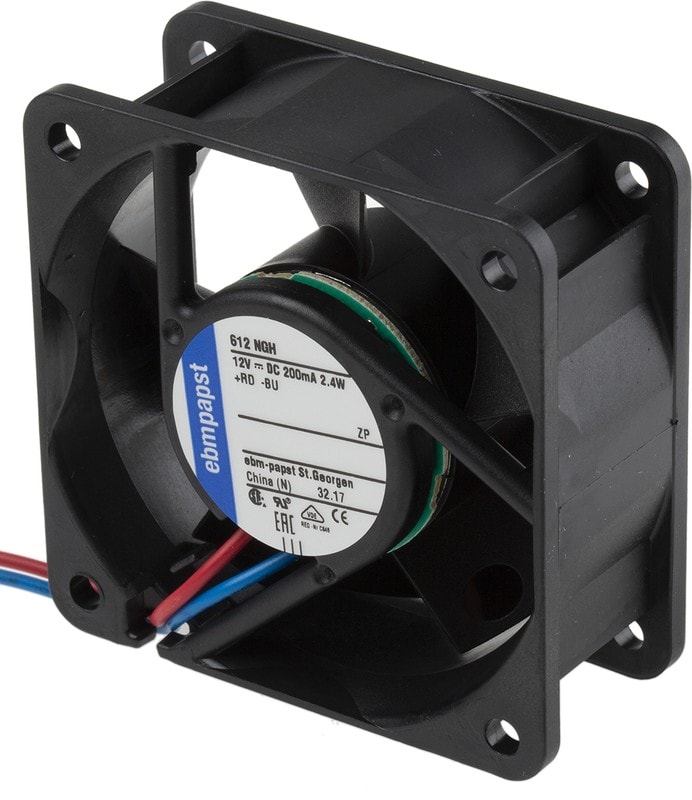

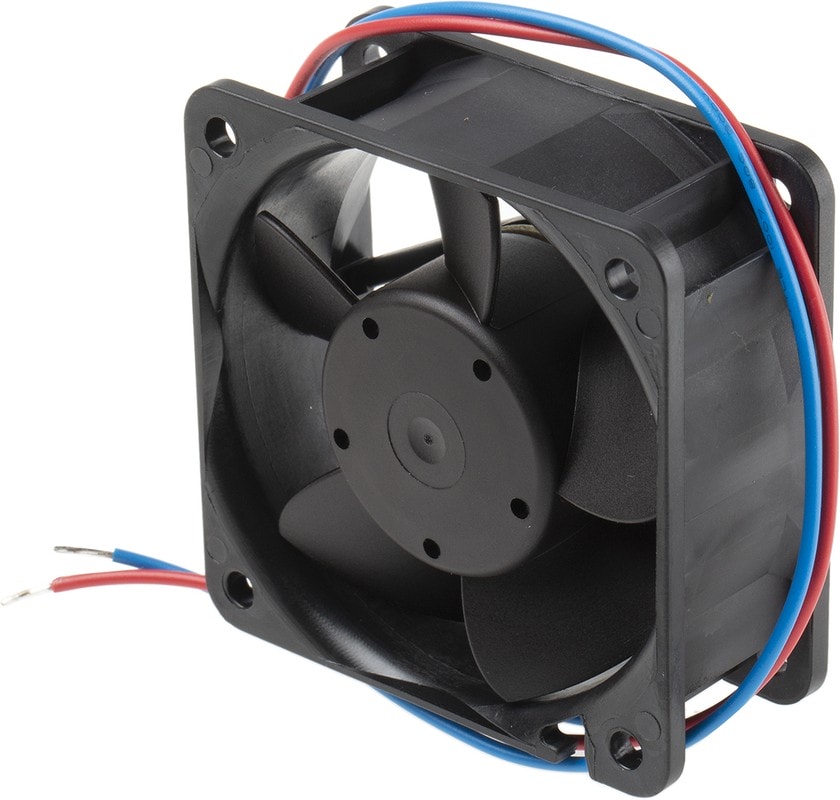

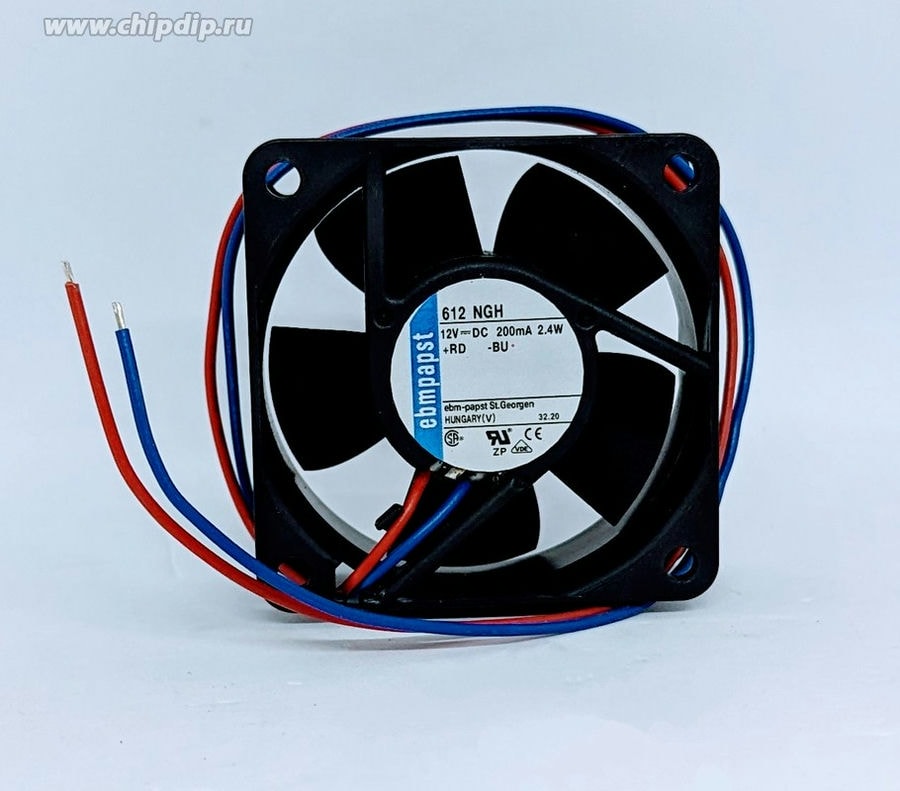

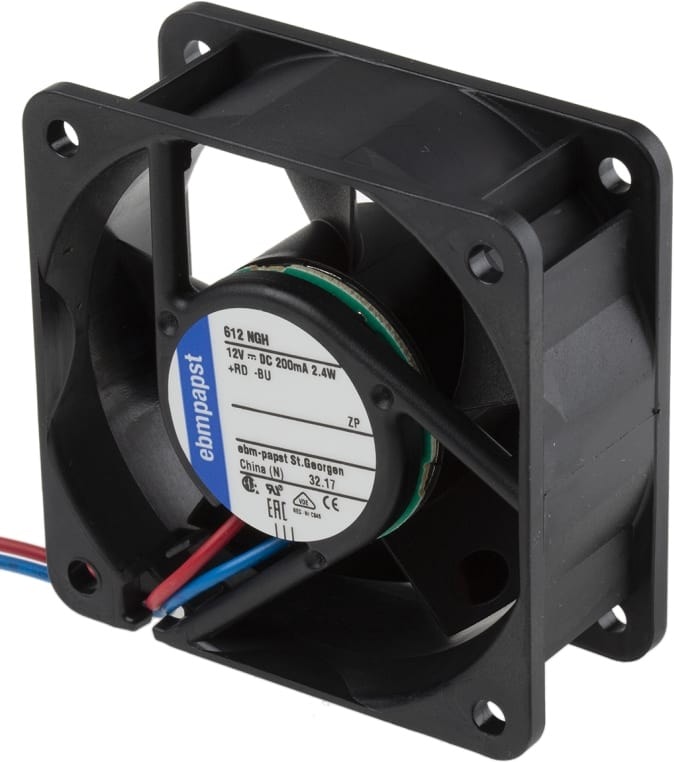

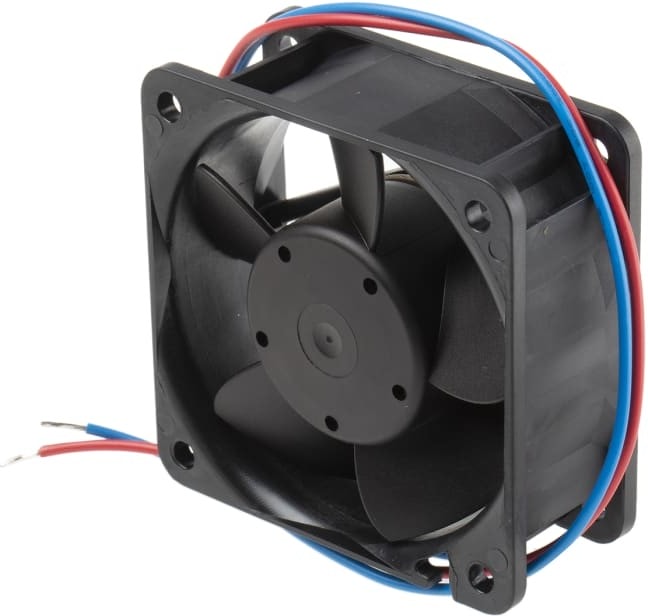

8023527470 Вентилятор Ebmpapst 612 NGH DC 12V 200mA 2.4W 60×25 2pin Hirschmann
3660,00 ₽
Описание
Описание Вентилятор осевой, 12В, DC, 60x60x25мм, подшипник скольжения, 43 куб.м/ч, 2,4W Характеристики
| Категория | вентилятор |
| Тип | осевой |
| Вес, г | 77 |
| Air Flow | 43m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 38 dB |
| Series | 600NG-> |
| Special Features | None |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 35.0dB(A) |
| Power Rating | 2.6 W |
| Approval Agency | CE, CSA, EAC, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Width | 60mm |
| Category | DC Fan |
| Housing Material | Plastic |
| Maximum Airflow | 27.1 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Power consumption | 2 W |
| Rated voltage | 12 V |
| Sound pressure level | 38 db |
| speed | 5600 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 46 m³/h |
| Current Rating (Amps) | 0.200A |
| Static Pressure | 0.363 in H2O(90.5 Pa) |
| AC or DC Operation | DC |
| Voltage Range | 8 ~ 15VDC |
| Разъём питания, Pin | 2pin |
Детали
| Бренд | EBM-PAPST |
|---|
