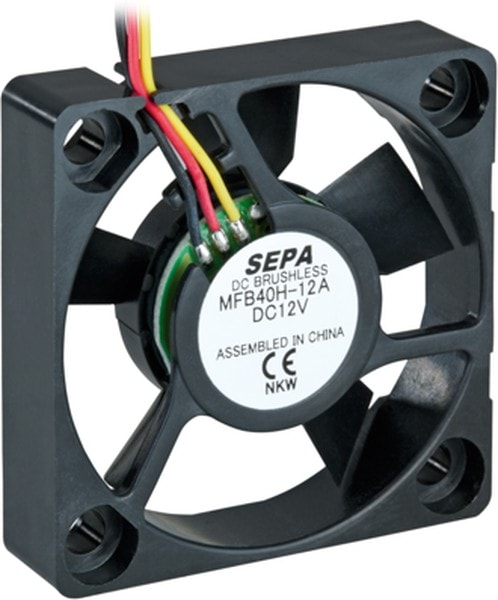

8026563574 DC axial fan, 12 V, 40 x 40 x 10 mm, 11.1 m³/h, 21 dB, ball bearing, SEPA MFB40H12A Hirschmann
4630,00 ₽
Описание
DC Axial fan, MFB40H12A, SEPA
TheMFB40H12A is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- Suitable for battery-powered devices
- Extremely robust
- Material housing: glass fiber reinforced plastic (PBT)
| Вес, г | 13 |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Rated voltage | 12 V |
| Sound pressure level | 21 db |
| speed | 5500 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 11.1 m³/h |
| Bearing Type | Ball Bearing |
| Current Rating | 40mA |
| Air Flow — CFM | 6.54CFM |
| Air Flow — m3/min | 0.185m³/min |
| External Depth | 10mm |
| Fan Frame Size | 40mm |
| Fan Frame Type | Square |
| Noise Rating | 24dBA |
| Power Connection Type | 3 Lead Wires |
| Product Range | MFB40H |
| Rated Speed | 5500rpm |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Sepa |
|---|
