EBM-PAPST
8035597439 Вентилятор Ebmpapst 6224 NM 24v 9.4W 172×50 2 pin Hirschmann
13590,00 ₽
Описание

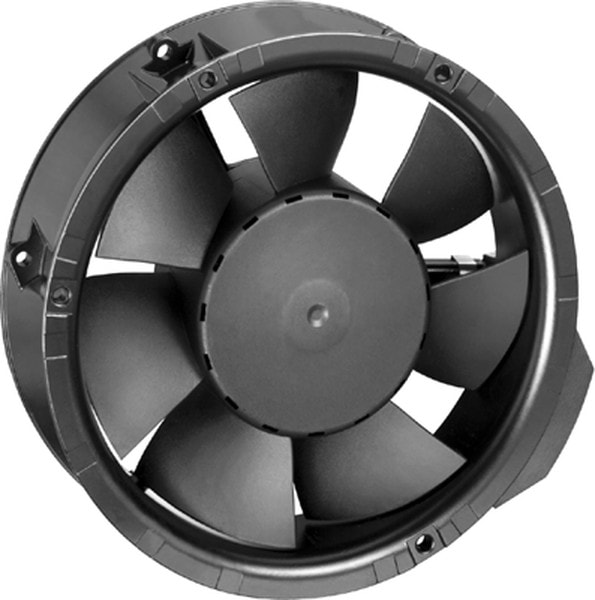

DC Axial fan, 6224 NM, EBM-PAPST
The 6224 NM is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 600 Ncm
- Material housing: plastic
| Потребляемая мощность, Вт | 12 |
| Вес, кг | 1 |
| Mounting | Flange Mount |
| Special Features | Middle Speed |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×50 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 51 |
| Питание | 2pin |
| Product Category | DC Fan |
| Type | Axial |
| Power consumption | 12 W |
| Rated voltage | 24 V |
| Sound pressure level | 50 db |
| speed | 2850 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 350 m³/h |
| Частота вращения,об./мин. | 2850 |
| Производительность,м.куб./мин. | 206 |
| Шум, дБA | 50 |
| Part Status | Active |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 72 |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Locking|Polarity |
| Product Height (mm) | 50.8 |
| Product Diameter (mm) | 171.5 |
| Operating Input Voltage Range (V) | 12 to 32 |
Детали
| Бренд | EBM-PAPST |
|---|
