EBM-PAPST

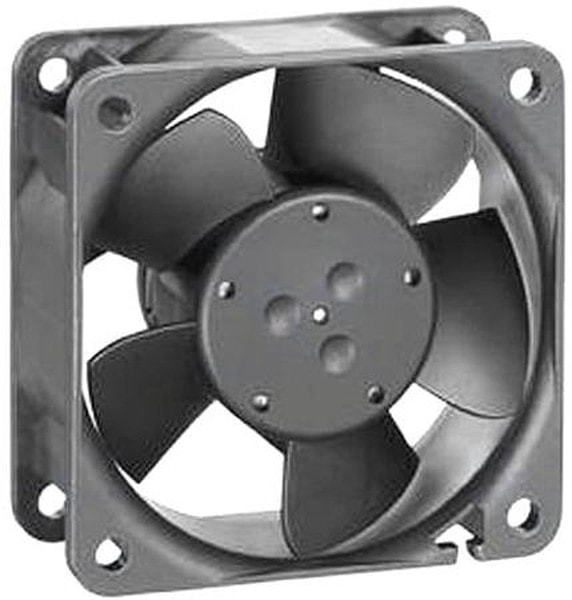

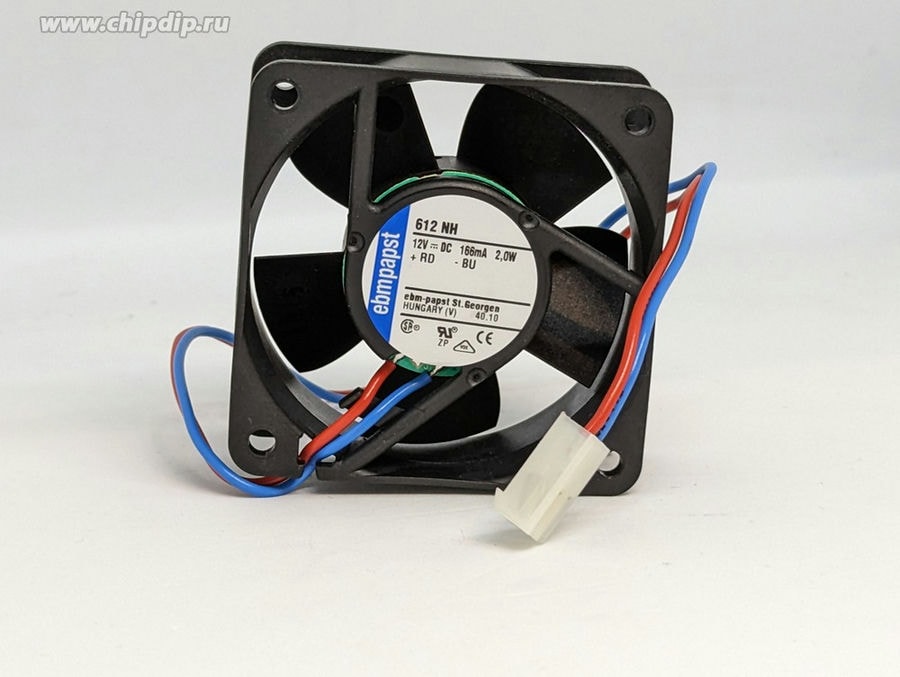

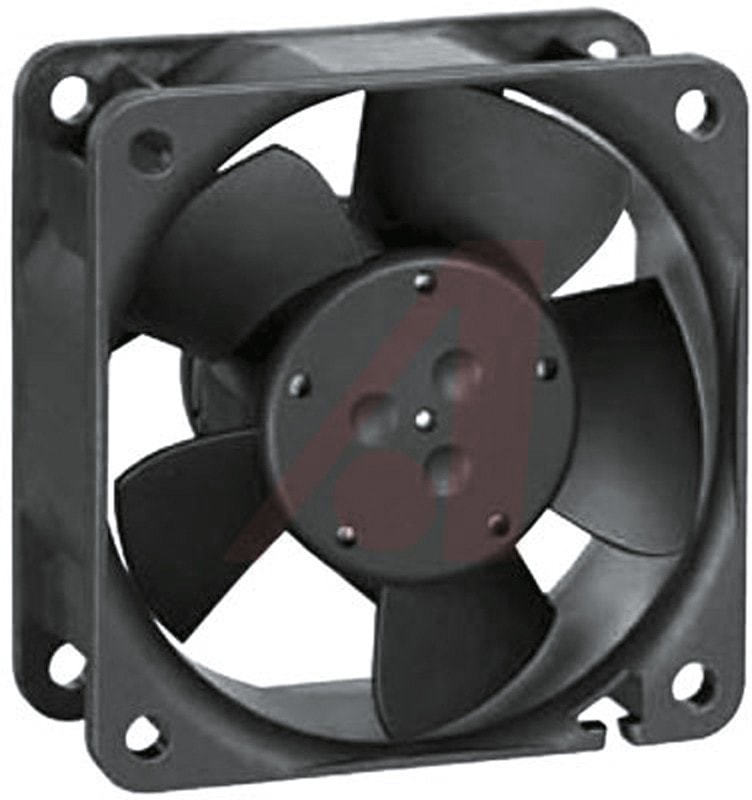

8035598617 Вентилятор Ebmpapst 612 NH DC 12V 166mA 2.0W 60×25 2pin () Hirschmann
4000,00 ₽
Описание
Описание Вентилятор осевой, 60x60x25мм, подшипник качения, 12В, DC, 46,1куб.м/ч, 38дБА Характеристики
| Категория | вентилятор |
| Тип | осевой |
| Вес, г | 66 |
| Air Flow | 43m3/h |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 37 dB |
| Series | 600N-> |
| Special Features | High Speed |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Noise | 37.0dB(A) |
| Power Rating | 1.8 W |
| Type | Axial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Weight | 0.187 lb(84.82 g) |
| Width | 25.40mm |
| Category | DC Fan |
| COO | CN |
| Housing Material | Plastic |
| Maximum Airflow | 27.1 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Power consumption | 1.8 W |
| Rated voltage | 12 V |
| Sound pressure level | 37 db |
| speed | 5600 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 43 m³/h |
| Производительность,м.куб./мин. | 0.72 |
| Шум, дБA | 37 |
| AC or DC Operation | DC |
| Direction of Curve | Forward |
| Sensor Type | Voltage Output |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant with Exemption |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Locking|Polarity |
| Shape | Square |
| Voltage Range | 8 ~ 15VDC |
| Size (Metric) (mm) | 60 X 60 X 25.4 |
| Operating Input Voltage Range (V) | 8 to 15 |
Детали
| Бренд | EBM-PAPST |
|---|
